The Golem Team, RoboCup@Home 2013

Luis A. Pineda

Computer Sciences Department Instituto de Investigaciones en Matemáticas Aplicadas y en Sistemas Universidad Nacional Autónoma de México

http://leibniz.iimas.unam.mx/~luis · http://golem.iimas.unam.mx · http://leibniz.iimas.unam.mx/~luis/DIME/

Abstract In this paper, the Golem team and its robot Golem-II+ are described. The design of Golem-II+ is based on a conceptual framework that is centered on the notion of dialogue model and the use of an interaction-oriented cognitive architecture (IOCA) with its associated programming environment. The framework provides flexibility and abstraction for task description and implementation, as well as a high level of modularity. This framework is now being evaluated with the tests of the RoboCup@Home competition.

Team Members and Responsibilities

Robot: Golem-II+.

Academics:

Dr. Luis A. Pineda. Project's Philosophy, Dialogue Models and Cognitive Architecture.

Dr. Iván V. Meza. Language, Dialogue Manager and Cognitive Architecture.

Dr. Gibrán Fuentes. Vision and Object Manipulation.

Dr. Caleb Rascón. Audio, Sound Localization, and Navigation.

Dr. Mario Peña. Electronics and Instrumentation.

M.Sc. Mauricio Reyes Castillo. Robot's and Team's Image.

M.Sc. Arturo Rodríguez-García. Person Tracking.

M.Sc. Hernando Ortega. Electro-mechanical Devices.

Ms. Lisset Salinas. Dialogue Models.

Mr. Joel Durán Ortega. Electronics and Instrumentation.

Students:

Ms. Varinia Estrada. Linguistics.

Group Background

The Golem Group was created within the context of the project "Diálogos Inteligentes Multimodales en Español" (DIME, Intelligent Multimodal Dialogues in Spanish). DIME was founded by Dr. Luis A. Pineda in 1998 at IIMAS, UNAM, with the purpose of developing a theory, a methodology, and a programming environment for the construction of AI systems with spoken Spanish and other input and output modalities. The theory and programming environment had to be modular, and also language, domain and application independent. The initial efforts of the group were focused on the analysis of multimodal task-oriented human dialogues, the development of a Spanish grammar, the construction of a flexible platform for speech recognition in Spanish, and the integration of a software platform for the construction of interactive systems with spoken Spanish.

Within this context, the Golem project started in 2001 with the purpose of generalizing the theory for the construction of intelligent mobile agents. The group presented the robot Golem in July, 2002, and it was able to sustain a simple spoken conversation and to follow simple commands for movement. The group then focused on developing a pragmatics-oriented interpretation and action theory for interactive applications. From this latter work, a theory for the specification and interpretation of dialogue models emerged [12].

By the end of 2006, we had a reliable dialogue manager and a more robust Spanish speech recognition platform, and a new version of Golem was presented at UNAM's science museum Universum in June, 2007. This time Golem was able to guide a poster session about the research projects of the Computer Science Department at IIMAS, UNAM. This version of Golem was also widely demonstrated in several academic events in Mexico until 2009. Next, we incorporated computer vision facilities into the platform [1] and in December 2009 we presented the module "Guess the card: Golem in Universum". This application stands in the permanent exhibition of the Universum museum [9,10].

In 2010, we started the development of the Golem-II+ service robot, which is also able to guide a poster session. In addition, the robot is capable of interpreting pointing gestures performed by the human-user during conversation, illustrating the coordination of language, vision and motor behavior [2]. For the development of Golem-II+, we incorporated an innovative explicit cognitive architecture that, in conjunction with the dialogue model theory and program interpreter, constitutes the theoretical core of our approach [13,14].

The Golem Team has participated in RoboCup@Home Istanbul, Turkey 2011, and RoboCup@Home Mexico 2012, both of which provided important feedback for the robot's development. To this point, we have incorporated the capability of spatial reasoning to the navigation subsystem, added the ability of facing the interlocutor during human-robot interactions [16]. We are also exploring the possibility for the robot to interact with more than one agent at a time, being humans or robots, and are continuing to develop the test scenarios of the RoboCup@Home competition to develop further our theory, methodology and programming environment.

An Interaction-Oriented Cognitive Architecture

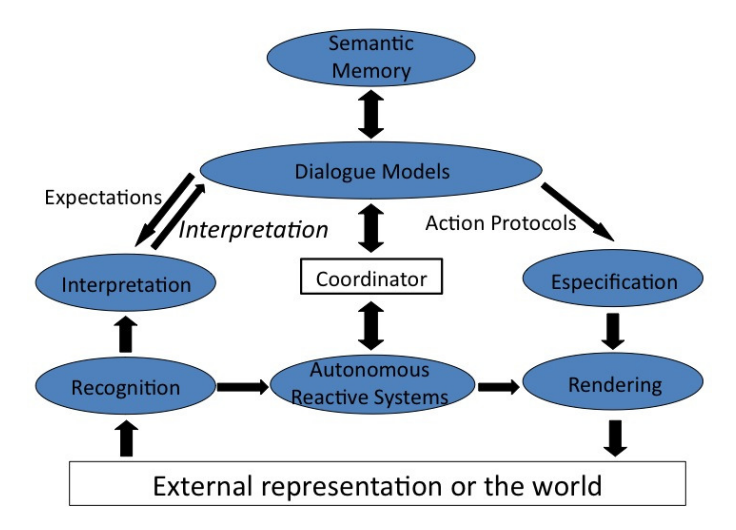

The behavior of our robot Golem-II+ is regulated by an Interaction Oriented Cognitive Architecture (IOCA) [13,14]. A diagram of IOCA can be seen in Figure 1.

External stimuli (vision, audio, etc.) are processed by Recognition modules. There are different modules for different perceptual modalities. An example of a recognition module is the speech recognition module which encodes raw information, but does not assign any meaning to it. These different encodings are the "Modalities" of the system, which present what is being recognized in the form of what we call "Modal Codes": codified information without any meaning.

The Interpretation module assigns meaning to Modal Codes. In order to do this, it takes into account the Expectations from the current situation and the history of the interaction. The Interpretation module has access to the Perceptual Memory which relates Modal Images with their meaning, building the interpretation. Interpretations are represented in a propositional format, which is modality independent. For example, the same Interpretation can be acquired by speech recognition or by hand gesture recognition.

The Dialogue Models are the center of IOCA [13,14] and have been the research focus of our group. Dialogue Models describe the task via a set of situations. A Situation is an information state defined in terms of the Expectations of the agent in a state, so if the Expectations change, the agent moves to a new Situation. Expectations depend on the context and can be determined dynamically in relation to the interaction history.

The way that these Situations are linked together is by relating such Expectations with a corresponding Action and a following Situation. Expectations are propositional as well, and in order to be triggered they must be matched with an Interpretation. Once this matching occurs, the corresponding actions are performed and the system reaches its next Situation. Actions can be external (e.g. say something, move, etc.) or internal (e.g. plan, reason, etc.). Actions are processed by the Specification modules—considering the Perceptual Memory—producing a parametric specification of Concrete Actions. These are then delivered to different Rendering devices, which produce changes in the state of the world.

However, it is not sufficient to model applications based solely in expectations. In order to cope with dynamic environments (unexpected obstacles, the user taking the initiative), IOCA was extended with a set of reactive modules, referred to as Autonomous Reactive Systems (ARSs), that relate the input information collected by the recognition devices with the rendering devices directly. Two ARSs are currently implemented: the Autonomous Navigation System (ANS) and the Autonomous Position and Orientation Source of Sound Detection System (APOS) to allow the robot to face its interlocutor reactively. In addition, The Coordinator was included as a control structure for coordinating the Dialogue Models with the ARSs.

An important part of IOCA is that the Dialogue Models perceive and interact with the world in an abstract manner. The state of the world and the set of possible expectations that can follow are given an abstract meaning, which can be perceived by any number of Recognizers. The same applies when acting upon the world: an abstract command such as "go to the kitchen", provided by the Dialogue Manager, will be realized by the appropriate Renderer for the robot to start moving. This paradigm provides great flexibility in software development, as the Recognizers and Renderers become modular and replaceable, while the task description remains intact. This also secures a framework with which different tasks can be described and that does not require a complete rewrite of the internal software. Moreover, since the Recognizers and Renderers are modular, they can also be reused for different tasks with relative ease.

Software

This section describes the software components of the Golem-II+ system.

Dialogue Manager

We implement the dialogue manager as an interpreter of specifications of Dialogue Models. The dialogue manager is in charge of managing the execution of a task by defining which is the current situation and its expectations. It also administers the Interpretation and Specification modules of IOCA, by matching the interpretations with the expectations, and for the matched expectation dispatching the specification of the corresponding Actions. Additionally, the dialogue manager keeps tracks of the history of the Interaction.

The dialogue manager is implemented via a novel programming language, developed within the context of the project, called SitLog (based in Prolog) to implement the dialogue models. Finally, we use the Open Agent Architecture (OAA2 [3]) as a communication channel among the different modules.

Vision

Vision is carried out via various vision modules, described hereafter. It is complemented by a 'neck' that can move the cameras in the horizontal and vertical angular planes. All of the vision modules belong to the Recognition part of IOCA.

Face Detection, Tracking and Recognition. OpenCV functions are used to perform face detection and recognition. Face detection is carried out by using the Viola-Jones Method [21], and tracking is carried out via a technique based on Kalman Filtering [7]. Face recognition is based on Eigenfaces technique [20]. We take advantage of the tilt capability of the Kinect camera to enhance the recognition process.

Object Recognition. This capability is performed using the MOPED framework proposed by Collet et. al. [4]. During the training stage, several images are acquired from each object that is to be recognized, and SIFT features [8] are extracted from each image. Structure from Motion is applied to arrange all the features from all the images and obtain a 3D model of each object. In the recognition phase, the SIFT features are obtained from the visual scene and, with 3D model at hand, hypothesis are made in an iterative manner using Iterative Clustering Estimation [4]. Finally, Projective Clustering [4] is used to group the similar hypothesis and provide one for each of the objects being observed.

Person Tracking. For person identification, the Person Tracker that is part of the OpenNI driver was employed, where several blobs in the visual scene are hypothesized as being person. A person that performs a certain known action is then labeled in the visual scene as the one to be tracked. Then, color features are extracted from the blob section of the visual scene to be used for identification at a later time, specifically when the user walks out of the visual scene or when there are several users in it.

Arm Manipulation

The 3-DOF robotic arms were built in-house, and are mounted on the robot over its mobile platform (modified in-house such that is its height can be controlled via software), providing a fourth DOF. The robotic arms are based on Robotis Dynamixel motors for movement, and are controlled via a Servo Controller, which, in turn, accepts commands of the type of "park", "grasp object", and "offer object". The latter two are able to accept distance and angle arguments.

When it comes to the "grasp" command, the hands of the robotic arms come equipped with three IR sensors which are employed for a local object search, having arrived to the desired angle and distance.

An OAA agent reports to and from the Servo Controller to the Dialogue Model, which makes it a IOCA Rendering module.

Speech Recognition and Synthesis

We use a robust live continuous speech recognizer based on the PocketSphinx software, coupled with the Walt Street Journal (WSJ) acoustic models. For the language models, we hand-crafted a corpus for each of the tasks, and made the ASR be able to switch from one to the other, depending on the context of the dialogue (A yes/no language model for confirmation, a name language model for when the user is being asked their name, etc.). This module is a Recognizer in the IOCA framework.

Similarly, for the speech synthesis we use open tools, in particular the Festival TTS package. From the point of view of the IOCA framework, this is a Rendering module.

Language Interpretation

In this version of the system there are two strategies for the language interpretation. The first strategy is a shallow semantic strategy which uses word and expression spotting. For this strategy, regular expressions and their meanings are stored in the Perceptual Memory. The natural language interpreter tries to match the regular expressions to the orthographic transcriptions that are similar to the expectations of the system. The second strategy is a deep semantic parser based on the GF formalism [15]: several grammars were defined specifically for fine grained semantics tasks, such as General Purpose Service Robot. This is an Interpretation module within the IOCA framework.

Audio

The GPL software JACK is used to create an all-encompassing simulated sound card that can be accessed by different audio clients at the same time. Two audio clients were created as Recognition Modules in IOCA.

Noise Filtering. A preprocessing module was created that stands between the Jack input and the ASR, processing each audio data window, negating the effects of the ambient via a Quantile-based noise estimator [18] that is able to provide real-time estimates of the ambient noise spectral signature even while the user is talking.

Audio-Localization. This module provides a robust direction-of-arrival estimation in near-realtime manner in mid-level reverberant environments, throughout the 360° range. The signals from the three microphones are set in an equilateral triangle, which provide three measured delay-comparisons. This provides redundancy to the direction-of-arrival estimation, as well as a close-to-linear mapping between delay measurements and direction-of-arrival estimations [16]. This module, in conjunction with the Reactive Navigation Module (described later), compose the Autonomous Position and Orientation Source of Sound Detection System (APOS). In addition, a multi-DOA estimation is employed if there are more than one user in the environment [17].

Navigation

An important issue in modern robotic navigation is the one of auto-localization, primarily the positioning errors that increase the more the robot moves around [19]. Golem-II+ generates hypotheses of its location from environmental 'clues' (doors, hallways, or the presence of another robot), basically a Cognitive Map, and can build a spatial model to be used for the correction of its current global coordinates through Spatial Reasoning.

The Spatial Reasoner subsumes lower navigational capabilities which are themselves handled by the Reactive Navigation Module (RNM). In addition to simple moving capabilities (turn θ degrees, move Z meters to the front, etc.), both the Dialogue Manager and the Spatial Reasoner can interact directly with the RNM, by only providing a pre-specified label of a location of where it is desired to move. The label is realized into a set of (x, y) Cartesian coordinates and a route that the robot will partake is deduced via the Dijkstra Algorithm [5], defined by a series of intermediate points. These are obtained from a topological map created from a weighted adjacency matrix overlaid over the map of the area. Between each intermediate point, obstacle evasion is carried out by using, in conjunction, Nearness Diagram [11] (by default) and Smooth Nearness Diagram [6] (as fall-back).

In conjunction, the Spatial Reasoner and the Reactive Navigation Module compose the Autonomous Navigation System (ANS) inside IOCA.

Software Libraries

Both the robot internal computer and the external laptop run the Ubuntu 12.04 operating system. Table 1 shows which software libraries are used by the IOCA modules and Golem-II+'s hardware.

Software Libraries used by the IOCA Modules and Hardware of Golem-II+

Description of the Hardware

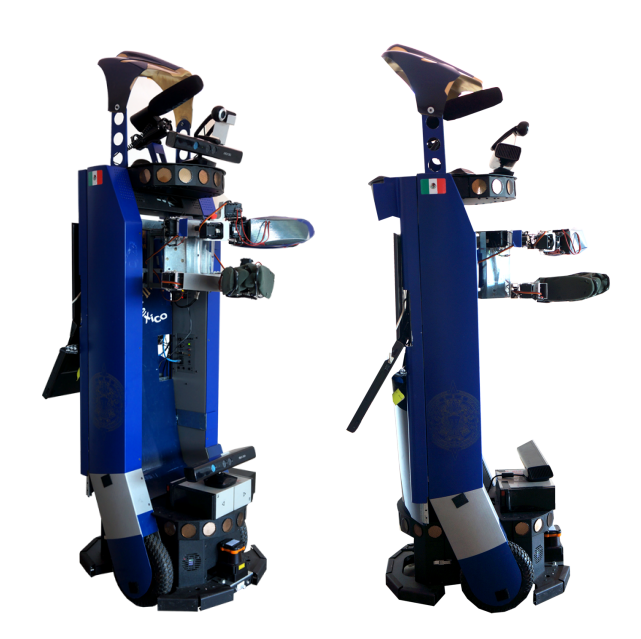

The "Golem-II+" robot (See Fig. 2) will be used, which is composed by the following hardware:

• PeopleBot™ robot (Mobile Robots Inc.)
  • Three 8-sensor sonar arrays.
  • Two protective IR sensors in the front.
  • Two vertical break beams.
  • Two protective 5-bumper arrays.
  • Speakers.
  • Internal computer VersaLogic EBX-12.
• Dell Precision M4600 laptop computer.
• QuickCam Pro 9000 Webcam
• Microsoft Kinect Camera
• Hokuyo UTM-30LX Laser
• Shure Base Omnidirectional microphones x3
• RODE VideoMic directional microphone
• M-Audio Fast Track Ultra external sound interface
• Infinity 3.5-Inch Two-Way loudspeakers x2
• In-house robotic arms and neck

Acknowledgments

Golem-II+ was financed by CONACyT project 81965 and by PAPIIT-UNAM projects IN-121206, IN-104408 and IN-115710.
