Team Description Paper 2023 - AutonOhm

Sina Steinmueller, Tim Lachmann, Johannes Vollet, Dong Wang, Rolf Schmidt, Sally Zeitler, Marco Masannek

University of Applied Sciences Nuremberg Georg-Simon-Ohm, Kesslerplatz 12, 90489 Nuremberg, Germany

https://www.th-nuernberg.de/en/faculties/efi/research/laboratories-actively-involved-in-research/mobile-robotics/robocupwork/

Abstract This paper presents the team AutonOhm and their solutions to the challenges of the RoboCup@Work league. The hardware section covers the robot setup of Ωmn3, which was developed using knowledge from previous robots used by the team. Custom solution approaches for the @Work navigation, perception, and manipulation tasks are discussed in the software section, as well as a control architecture for the autonomous task completion.

Introduction

The RoboCup@Work league, established in 2012, focuses on the use of mobile manipulators and their integration with automation equipment for performing industrial-relevant tasks [1]. Participating robots must be able to navigate in a previously known arena, reach different service areas and perform manipulation tasks. Therefore, each robot must be able to correctly identify a requested object on various background surfaces and pick and place the objects that vary in shape, appearance and weight. With low participation numbers of teams after the COVID-19 pandemic in the first on-site robocup at the world cup 2023 in Bangkok, Thailand, major changes to the structure of the competition have been made with the intention to ensure the future of the league. The main idea is to make setting foot in the league more easy for newer teams, while still keeping the ambition to target scientific problems in robotics in the more advanced stages of the competition. Therefore, the competition has been split into two main sections, the beginner and the advanced section. The Beginner Section isolates or simplifies some of the requirements for the robots so teams without much experience can successfully participate without having a competitive setup in relation to the more advanced teams. The Advanced Section introduces a new (more difficult) set of objects, aswell as incorporating Precise Placement and Rotating Table tasks into the newly introduced Advanced Transportation Tests. The standalone Tests have therefore been removed from the competition schedule. As these changes increase the upper treshold of skill required to do all tasks without making mistakes, the option to replace the real objects with april-tagged cubes has been introduced to relax the problem of object detection and manipulation.

AutonOhm

The AutonOhm-@Work team at the University of Applied Sciences Nuremberg Georg-Simon-Ohm was founded in September 2014. In 2017, the team was able to win both the German (Magdeburg) and the World Championship (Nagoya) title. With the knowledge and experience gained in the former tournaments, the team was also able to defend both of these titles in 2018.

In late 2018 most of the members finished their studies, which is why the team had to be rebuilt in 2019. Since then, the team consists of a small group of "core" members and changing short-term members. In 2021 the AutonOHM-@Work team won the SciRoc Challenge 2021 - Episode 5: Shopping Pick & Pack, as well as the World Championship title in the RoboCup Worldwide competition. Since late 2021 the team has welcomed new members.

Furthermore, the team defended the World Championship title in the Robo Cup Worldcup 2022.

Hardware Description

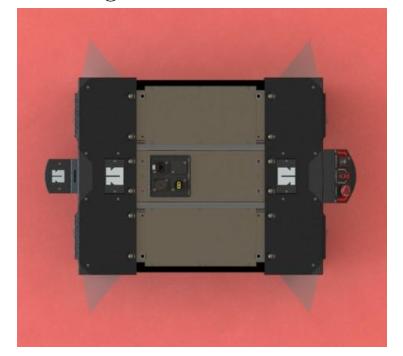

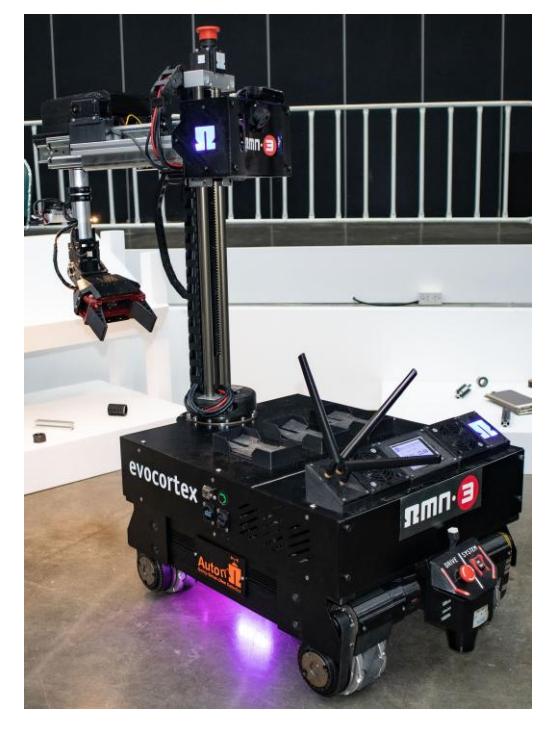

We are using a customized Evocortex[3] R&D platform with the smallest form factor available. The platform is equipped with an omnidirectional mecanum drive, an aluminum chassis capable of carrying loads up to 100 kg and a Li-Ion Battery with a nominal voltage of 24V and roughly 12.5Ah capacity. In our configuration, the platform does include any sensors, power management or computation units, which means it only serves as our base. Every further component needed was mounted in or on the chassis.

Sensors

Lidars Mapping, navigation and the detection of physical obstacles is performed by three SICK TiM571 2D Lidars. One each is mounted at the front and the back of the robot scanning 180°. As this creates dead zones at the robot's sides, a third sensor was mounted centred at the bottom of the robot, resulting in a full 360°scan of the robot's surroundings.

Cameras We use an Intel RealSense D435 3D-camera for the object perception. It is attached to the manipulator so that it can be positioned above the workstations to detect the surface and the position of the objects.

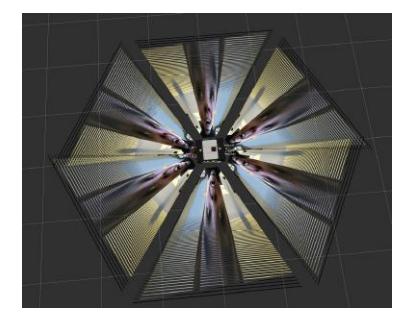

For barriertape detection, multiple ELP USB fisheye cameras can be mounted around the robot, which enables a 360° view. During the competition, we usually rely on a single fisheye camera because we have observed that all the barriertape is still detected.

PC

The newly introduced neural networks require a GPU for computation onboard of the robot. As embedded GPU chips such as the Nvidia Jetson TX2 do not provide enough processing power for the task optimization and navigation algorithms, we designed a custom PC solution consisting of an AMD Ryzen 3700x processor, a mini-ATX mainboard and a low power Nvidia GTX1650 graphics card, which is connected to the mainboard with a riser cable. This enabled us to build a flat case with both the mainboard and the graphics card safely mounted inside. The form factor of the case makes it possible to slide it into the robot's back, similar to a server rack.

PSU

We developed a custom PSU circuit board containing emergency switches for the actuators, a main power switch and high efficiency voltage controllers for 5V and 12V. It is equipped with a custom designed plug system with selectable voltage, so every peripheral device can be connected using the same plug type. In addition to that, we use an adjustable DC-DC controller for the power supply of the manipulator, as its power consumption exceeds the limits of the onboard controllers. For the custom PC system, we use a standard 250W automotive ATX power supply.

Manipulator

Arm As our budget did not allow the purchase of an applicable robot arm, we had to develop a custom solution. Industrial pick and place applications are often solved with SCARA robot arms. However, the SCARA concept was not exactly suitable for our purpose, which is why we combined the idea of a cylindrical robot arm with joint arms.

The concept utilizes linear gears to control the z- and x-axis of the arm. In combination with the first rotational z joint, the TCP can be moved to every point (x, y, z) given within the operation area. For more flexibility, two additional rotational joints (y and z) were added between the TCP and the linear x-axis to compensate for the object and arm orientation. The actuators we used are simple Dynamixel MX-106 and AX-64 motors, which were available in our laboratory. They have enough power to control each axis, with the linear z axis being able to lift up to 5 kg.

Most of the parts used were 3D printed using PETG material, including some main mounting parts and all gears. The main bearing, the linear rail and the full extension tray rails have to be purchased. Including the actuators, our current configuration sums up to about 2,500 EUR. We are planning to release the plans once the arm is fully developed, so that any student or research facility can rebuild the arm for educational purposes.

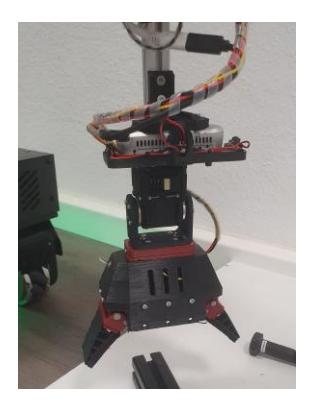

Gripper The gripper concept also utilizes 3D printed linear gears to convert the rotational force of a motor into linear movement of the fingers. It is based on a single Dynamixel AX-12 motor connected to the driving gear. The power transmission enables the motor to grasp objects with its full torque, rather than it being reduced by a lever with its length conditioned by the gripper fingers. The fin-ray fingers are custom printed out of rubber filament, making them soft and enabling them to close around grasped objects. They are also more wide than standard FESTO fin-ray fingers. This gripper concept is currently being revised to allow the use of force feedback.

Software Description

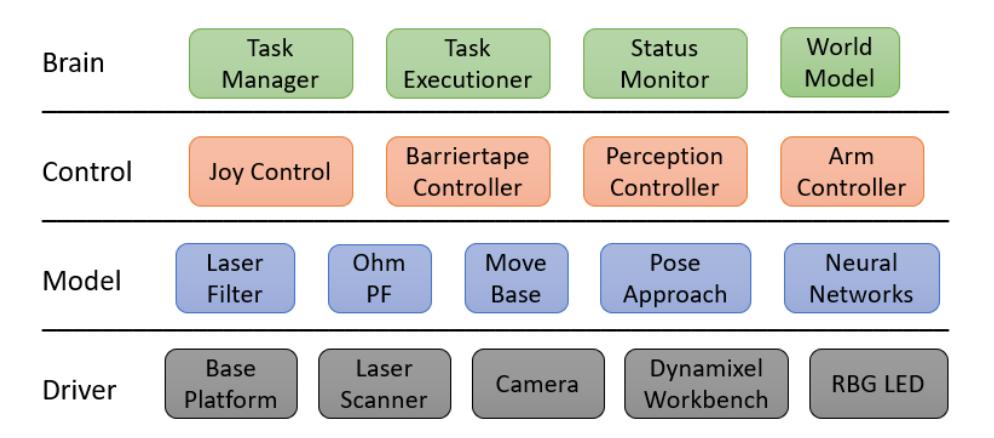

We use Linux Ubuntu 18.04 and ROS Melodic [4] as our operating systems. A custom software architecture was created to simplify the overall structure and to regain system flexibility. Our new design is displayed in Figure 4.

The idea derives from the Model-View-Controller software design pattern, which is adjusted to the usage of the ROS framework. Regarding the frequent use of hardware, an additional driver layer is added below the model layer. Models that need data from hardware, e.g. sensor data, can get them from the individual driver programs. The view layer is realized with each program using interfaces to RVIZ or simple console logging, which makes custom implementations obsolete. Components that require additional control features, such as the robot arm, have dedicated controllers providing simple interfaces for the brain layer, which is responsible for the actual task interpretation and execution. The individual layer components will be explained in the following sections.

Driver

The driver layer only contains actual hardware control programs, such as the sensor interfaces. The idea here is that the whole layer can be replaced with simulation tools such as Gazebo.

Base Platform The base platform driver converts incoming cmd vel messages into wheel rpm and calculates the odometry from obtained rpm. It stops the robot automatically if the incoming commands time out to prevent uncontrolled movements. An additional twist mux node throttles incoming commands from the joy controller, move base and the pose approach.

Laser Scanner Three sick tim nodes provide the interface to the scanners with given IP address and scan area configuration. However, as the Lidar is prone to measurement errors such as shadows or reflections, custom laser filters are applied to the raw data for later computation.

Camera We use the Intel Realsense SDK with the provided ROS wrapper. The fisheye cameras are accessed via the ROS usb cam package[20].

Dynamixel Workbench The tower arm is controlled with a controller instance of the dynamixel workbench package. It provides a trajectory interface to control multiple motors at once, which we use for trajectory execution. As our gripper also uses a dynamixel motor, but needs extended access to motor variables (e.g. torque), a dedicated controller instance is used for the gripper controls and feedback.

Model

Our models contain all algorithms used to challenge the problems of the tasks in the @Work league. This includes localization, navigation and perception. The task planner is not included as a model but in the brain layer because it is more convenient to attach it directly to the task manager, as discussed in section 4.4.

Laser Filter As mentioned in section 4.1, we filter the raw laser data before computing. The first filters are simple area filters to delete the robot's wheels from the scan. The second filter is a custom jumping point filter implementation. We faced problems with reflections of the alu profile rails used for the walls of the arena, which caused the robot to mark free space as occupied. The filter calculates the x- and y-position for each scan point and checks if there are enough neighbors in close range to mark a point as valid. All points with less than n neighbors in the given range will be handled as measurement errors and therefore deleted.

Ohm PF For localization in the arena, we use our own particle filter algorithm. Its functionality is close to amcl localization, as described in [5] and [13]. The algorithm is capable of using multiple laser scanners and an omnidirectional movement model. Due to the Monte Carlo filtering approach, the localization is robust and accurate enough to provide useful positioning data to the navigation system. Positioning error with the particle filter is about 6 cm, depending on the complexity and speed of the actual movement.

Move Base We use the ROS navigation stack [10] for global path planning and the local path control loops. Path cost calculations are performed by using the costmap 2D plugins. The base layer is a 2D laser map created with gmapping [11,12]. On top of that, we use a barriertape map layer which contains all detected barriertape points. For local obstacle avoidance, we added an obstacle layer which includes laser data from all three laser scanners. All layers are combined in the final inflation layer. Global path planning is computed with the mcr global planner [17] while the path is executed using the TEB local planner [6,7,8,9]. As the local planner is not able to precisely navigate to a given goal pose, we set the goal tolerance relatively high. Once we reached our goal with move base, we continue exact positioning with our custom controller, the pose approach.

Pose Approach The pose approach package utilizes a simple PID controller to move the robot to a given pose. It utilizes the robot's localization pose as input and the target pose as reference. As the controller does not consider costmap obstacles, the maximum distance to the target is 20 cm to prevent collisions. A laser monitor algorithm checks for obstacles in the current scan and stops the robot if necessary.

Fisheye rectification The raw fisheye images need to be rectified to be used as input for the detection network. A specific image pipeline fork [21] is used, which contains this functionality.

NN - Barriertape For the barriertape detection, we use a U-Net with manually labelled datasets. The ROS node receives raw input images and returns a masked binary image. We have ported the network node from Python to C++ to increase the detection rate from around 5Hz up to 20Hz.

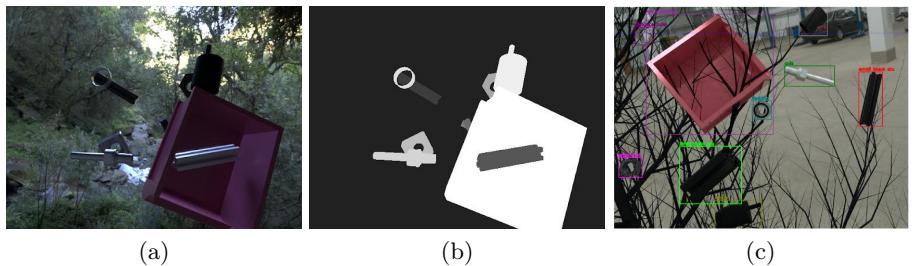

NN - Objects The detection and classification of objects is done with a Tiny-YOLO-v3 network. The node receives a raw input image and returns a vector with the ID, bounding box and confidence of all objects that were found. As our dataset would require more than 10,000 labelled images, which would require a high amount of time to create, we have implemented an automated dataset creation method using Blender and Python. It basically changes environments, illumination, camera and object pose as well as object appearance in pre-defined bounds. The script creates rendered images as well as bounding box, segmentation and 6DoF labels. With this data generation method, data which is quite similar to the original scene can be created, as well as rather abstract data (Figure 5). We are currently also working on data generation for deformable objects, such as the objects used in the SciRoc Challenge 2021 - Episode 5: Shopping Pick & Pack [19].

Using an original to artificial image ratio of 1:10, we achieved a detection reliability of over 90% for most scenes. Our data generation scripts are public and free to use [15]. The trained network is converted to TRT-Engine using code from the TRT-YOLO-App from the Deepstream Reference Apps [16]. This increases performance as the CUDA cores will be used more efficient, and makes a detection rate of up to 60Hz possible. In the future, other network types such as segmentation networks and 6DoF networks will be explored.

Controller

Model nodes that require additional control features are connected to control nodes, which then provide interfaces for the brain layer. They use our robotcustom msgs interfaces to share information about the subtask, workstation, or objects. Nodes may have specific subtask types implemented into their behaviour to react optimized.

Joy Control We use a PS5 joystick to move our robot manually (e.g. for mapping). For this, we have implemented a custom teleop joy node with similar functionality. We also plan to implement the usage of the PS5 feedback functions such as rumble.

Barriertape Control The barriertape controller is a custom mapping implementation for visual obstacles. It throttles the input images to the barriertape network and computes the masked images. Looping through multiple cameras enables us to perform 360° barriertape detection.

Received masked images are converted into a point cloud with a predefined density. This pointcloud is then transformed from the individual camera frame into the global map frame. Afterwards, all new points are compared to the existing map points. New barriertape points that are already occupied are ignored to save computation. As we faced problems with image blur and therefore resulting non-precise barriertape detection, we also compute pixels that mark free space (no barriertape detected). They are compared to existing points, which get deleted if they overlap.

The whole map is converted into an occupancy grid and then published periodically, so it can be included in the costmap of the move base node. The node is controlled via service calls, which enable or disable the detection loop. The map is always published once the node finishes the init process.

Arm Control As the kinematic model of the tower arm has only one solution for a given TCP position, we developed a custom arm controller node instead of using moveIt. It is possible to adjust the amount and type of joints and links via ROS parameters, only the inverse kinematics solution has to be adjusted for new arms. Using predefined danger zones, the arm executes a self calculated trajectory to the target pose considering the individual motor parameters. The arm is controlled via ROS services or a development GUI for debugging. When using the services, the arm executes a full task using the given information, which means, in case of a pick task, it moves the TCP to the object position, closes the gripper, and stores the object. After the subtask finishes, feedback of the exit status is returned to the caller.

Perception Control The perception control node is responsible for the workstation analysis and object detection from a given scene (3D Pointcloud and RGB image). First, the surface equation of the workstation is calculated using the RANSAC [14] algorithm. If a valid result is obtained, raw images are sent to the object perception network (4.2). All found objects are then localized using the pinhole camera model, the workstation plane and the bounding box pixels. Finally, the position is transformed into the workstation frame and saved. For moving objects, multiple positions are recorded and then used to calculate the movement equation with RANSAC.

Brain

The brain layer provides nodes which contain the intelligence of the robot, which means the tracking of itself, its environment and the received tasks.

Worldmodel All data obtained about the robot's environment is stored in the worldmodel database. This includes the map, all workstation positions and all detected objects on the workstations. The data can be accessed using service calls.

Status Monitor The status monitor keeps track of the robot itself. It saves the current pose, inventory and state. The associated color code is sent to the RGB LED driver node.

Task Manager The robot can receive tasks from multiple sources, such as the RefBox or voice commands. In order to process different input formats, different parsers are used to standardize the input for the task manager.

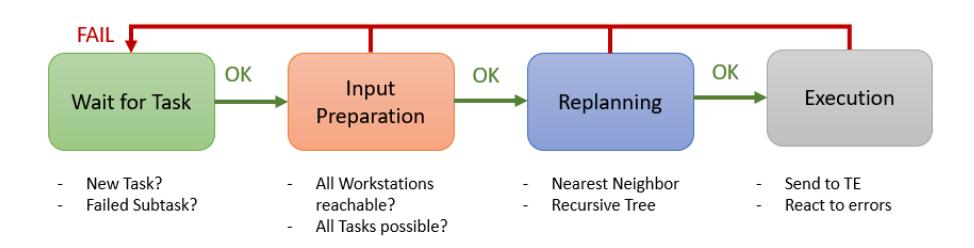

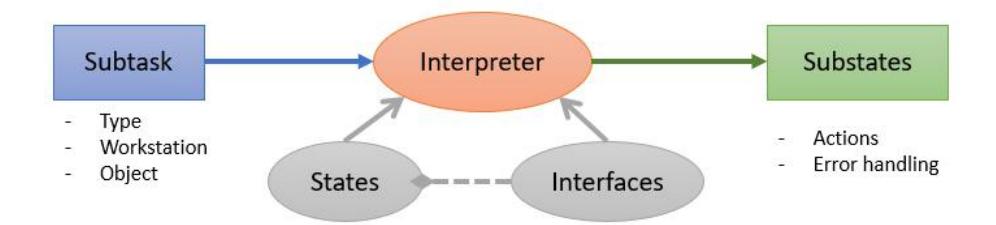

When the robot receives a new transportation task, it is analysed and planned before the execution. All extracted subtasks are managed by the task manager node, which replans the order of all subtasks. With the increasing numbers of transportation tasks in the competition, high efficiency is crucial to achieve perfect runs. The score of a single subtask is calculated considering expected duration, points, and the risk of failure. These factors may change if certain conditions are met, for example, the navigation time is set to zero if the robot already is at the given position.

Before even starting the planning of subtasks, the received task is analysed for impossible tasks. This would be the case if the target workstation is unknown or unreachable, or an object is lost. All subtasks that cannot be executed are moved to a deletion vector.

A self developed planning algorithm then calculates the raw score of the remaining subtask vector, followed by a simple nearest neighbour search (NN). This result is then fed to a recursive tree calculation method, which searches for the optimal solution. A branch is only fully calculated if the score sum does not exceed the best solution found with the NN. This way, we have achieved an overall planning time for the BTT3 challenge (14 subtasks) of around 10s. For subtask numbers below 12 the planning only takes 2s. If the task load exceeds 14 tasks, we skip the recursive strategy, as planning time grows exponentially and therefore cannot produce results in the given time frame of a run.

Conclusion and Future Work

During the last season, we optimized our robot concept and further extended it. The robot arm concept has been reworked and improved, a new display has been implemented as well as voice-feedback functionality. We've started to bundle our knowledge in a repository [22], where many aspects of our solution will be publicly available. With this repository, we want to share our knowledge to provide other researchers with a basic foundation for autonomous robots and task completion. Last but not least, we've defended our title in the 2022 RoboCup WorldCup in Thailand.

In the coming season we plan on improving our object detection by using other network architectures such as segmentation, 6DoF and grasp detection networks. We are also reworking our gripper concept to enable the use of force feedback, which will improve our system. We also want to introduce performance monitoring, allowing us to identify bottlenecks and plan future improvements. Finally, we plan to extend the above-mentioned repository by adding more documentation as well as some theses from our students.

We are very much looking forward to the upcoming season, where we aim to defend our title once again at RoboCup 2023 in Bordeaux.
