Robocup Rescue 2015 - Robot League Team iRAP_JUNIOR (THAILAND)

Amornphun Phunopas, Jirath Phoprasit

Faculty of Engineering, King Mongkut's University of Technology North Bangkok (KMUTNB) 1518 Phacharat 1 Rd., Wongsawang, Bangsue, Bangkok Thailand 10800

http://www.kmutnb.ac.th · www.xsense.com · www.hokuyo-aut.jp · http://www.raytek.com

Abstract This paper describes about construction and operation of iRAP_JUNIOR. This is the next generation of iRAP_PRO, iRAP_JUDY and iRAP_FURIOUS who have got the 1st place four times in the World Robocup Rescue robot competitions (2009-2011 and 2013). Our team has two similar high mobility tele-operative robots and one autonomous robot. The tele-operative robots have front arms that driven by caterpillar, they can identify victims very well with commodity sensors and able to move autonomously in the radio drop-out zone. The difference between two tele-operative that is the one has used in the industrial rubber as a track wheel and another one used the chain with water-hose. The autonomous robot has a good mobility to move up the incline surface and identify victims by using vision system with image processing and thermal sensor. All of the robots are able to create explored map automatically and able to detect the QR code. The team is prepared for different scenarios that present in the World Robocup Rescue 2015 in Herfei, (China).

Introduction

"iRAP" which stands for "Invigorating Robot Activity Project" is the team of students from King Mongkut's University of Technology North Bangkok, Thailand

"iRAP_JUNIOR" is the new generation of rescue robot for the competition. The team members are the next generation of iRAP_PRO, iRAP_JUDY and iRAP_FURIOUS who have got the 1st place four times in the World Robocup Rescue robot competition (2009-2011 and 2013). The team has good experience and knowledge through these competitions.

The paper introduces our approach to Rescue Robotics. The team has designed and developed them for five years. The team designed three new robots, consisting of two similar tele-operative robots and an autonomous robot. The new robots have been designed by solving problems occurred from the last competition and improve the easiness in robots control and QR code detection. Our main focuses are explorating all areas, detecting all victims and generating a map in 2-D. The simulated situation included many rough surfaces, hard terrains, rolling floor, stairs, and incline floor; therefore, the rescue robot should be fast enough, light-weight and strong to circulate and explore.

The rescue robot for this competition is designed based on proficiency robots. Therefore, the team designed robot that can motivate roaming around rough terrain by using caterpillar wheel. The team designed stable cameras mounted arm on our robots and on the robot body to help identify possible victim. The team uses the high quality motor and sensory abilities. The full sets of affordable sensors are put on to the system to measure temperature, CO2, distance, to create map, and two-way communication. Our preliminary goal of this activity is to achieve a practical rescue robot for real situation such as disaster, earthquake and building destroy. The team expects that all we did can help people's life in real disaster situation.

Team Members and Their Contributions

The iRAP_JUNIOR has twelve members and three advisors. The names and responsibilities of each member are listed as follows:

iRAP_JUNIOR Team Members and Responsibilities

Operator Station Set-up and Break-Down (10 minutes)

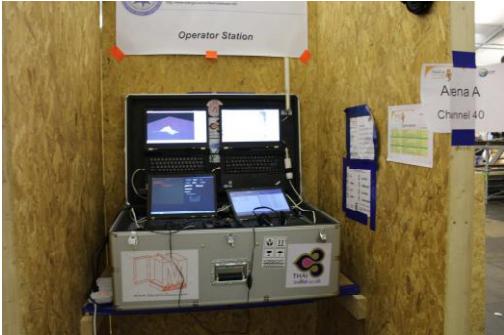

The speed of the set-up and break-down process of each task is very crucial. The team realizes that the faster for set-up and break-down, the better time for other tasks. The team uses aluminum case as the station. When needed, just open this aluminum case and turn on the switch. The operations can be started within 1 minute. Inside this aluminum case, there are 3 monitors, a notebook, an access point, a printer and a UPS. Once all the tasks are completed, the report and the generated map can be quickly printed out.

Communications

There are two communication systems used between the operator and the robots. The first one is wireless LAN based on IEEE 802.11a standard which functions as the main communication system. That is, it controls robots, receives video streaming from cameras on robots, and checking sensors feedback for locating the status of robots on computer monitor as well as for the automatic map generation. The second one is the RC controller with the radio frequency of 72 MHz as the backup communication system for an emergency situation. The range of the working distance is 400 m for outdoor and 200 m in the building.

Rescue Robot League - iRAP_JUNIOR (THAILAND) Frequency Specifications

Control Method and Human-Robot Interface

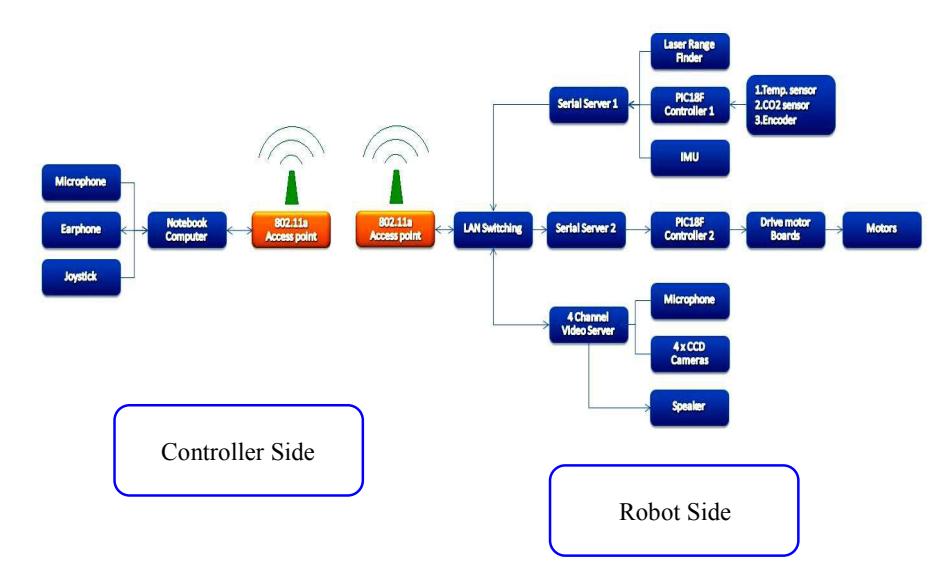

The main control is based on one CPU (PIC microcontroller 80 pins). The control system has two main tasks as follows:

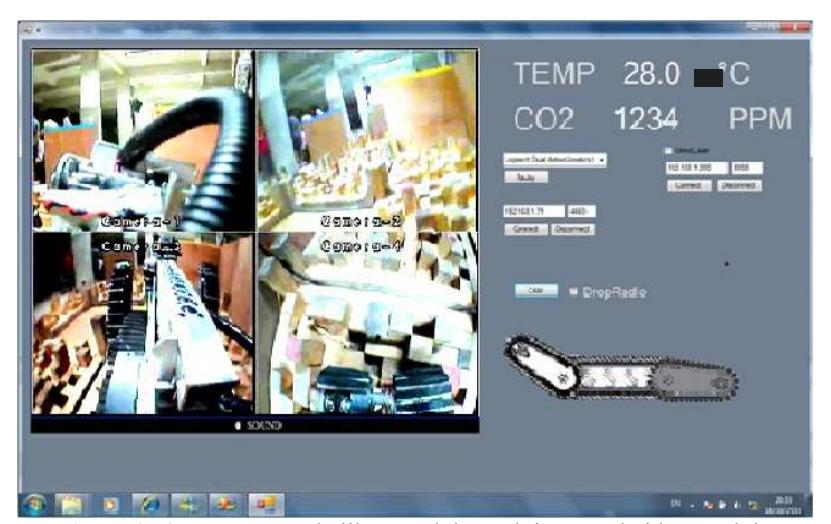

4.1 To receive the data for identifying the status of the robots (Quad-video and sensors information) and create 2-D map automatically. This information will be shown to the robot operator via a second computer monitor.

4.2 To send the data for controlling the movement by sending the signal to the drive control for controlling DC motor at various locations on the robots.

The RS-232 communication system will be used for sending and receiving the data of CPU. Therefore, there must be a serial server to convert RS-232 system to Ethernet system.

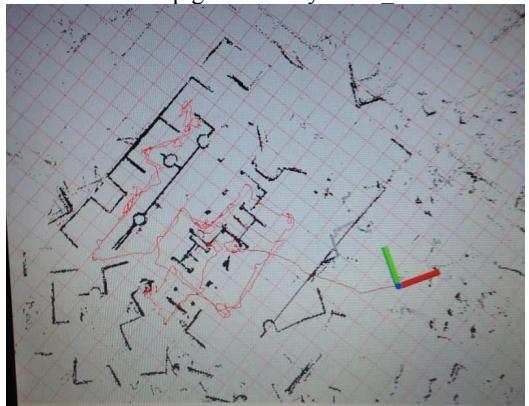

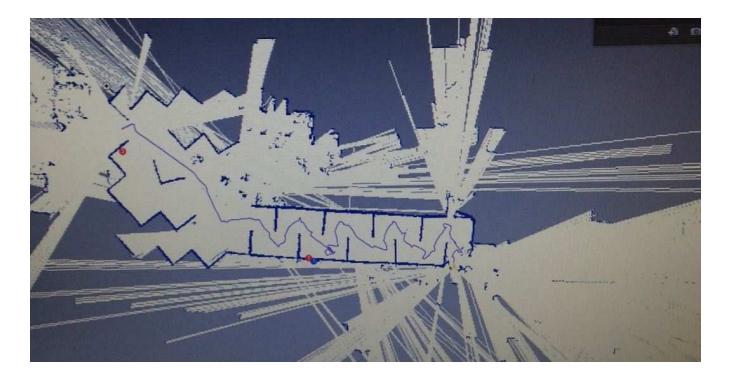

Map generation/printing

Several kinds of sensors are installed on each robot in order to gain the data for processing and creating automatically 2-D map on the operator's computer monitor. The map is generated by using the information from the distance of the robot movement from encoders, inclination of the robot and direction of the robot sensed by Inertia Measurement Unit, and distance between the robot and obstacles from laser range finder. However, when the robot moves on different kinds of surface, the slipping problem is unavoidable. This slipping is a major problem for designing and constructing the robot. Therefore, SLAM algorithm [1, 2] is utilized to help generate the map in addition to the information from the encoders and assign position on axis x, axis y and axis z from camera with lidar scan.

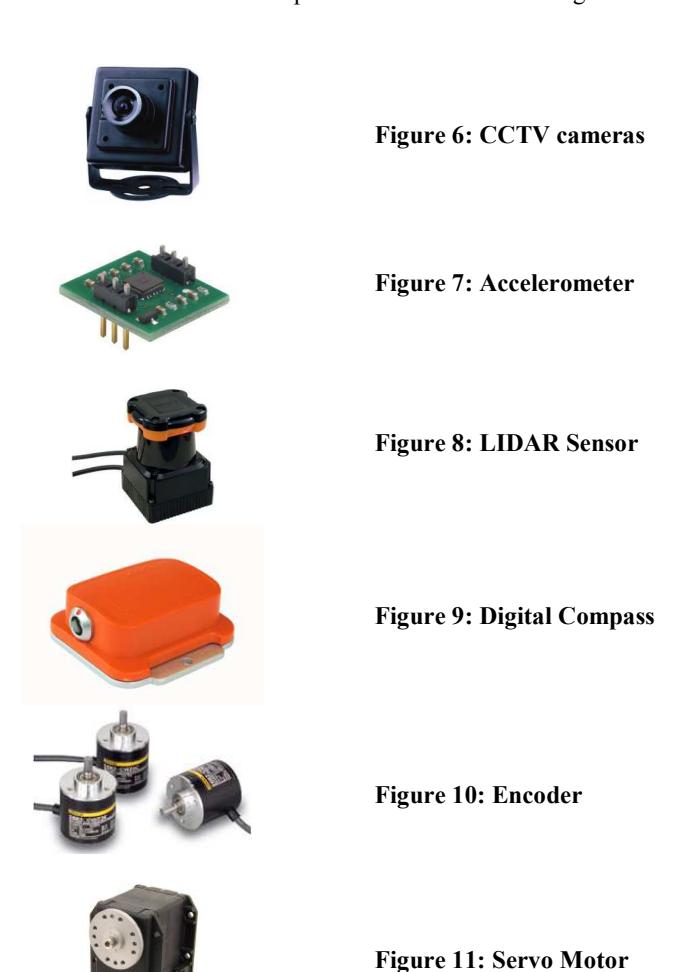

Sensors for Navigation and Localization

Sensors, used for guiding the robot movement and identifying the location of the robots for 1 Robot, are described as follows:

1. Four of CCTV cameras with wide-angle lenses
2. Axis Accelerometer (Shared with map generation)
3. LIDAR Sensor (Shared with map generation)
4. Digital Compass (Shared with map generation)
5. Five Encoders (Shared with map generation)
6. Four Servo Motors for show position of mechanism

Sensors for Victim Identification

For victim identification, the team will analyze information from different kinds of sensor that are located at the robot surveying arm. For preliminary step, the team will check the status of the victims through the CCTV camera and measure the victim body's temperature by utilizing temperature sensor. In some circumstances, this victim is informed by the temperature. And, it will be incorporated with data from CO2 sensor and the surrounding sound, which will be received via microphone, to analyze the situation of the victim.

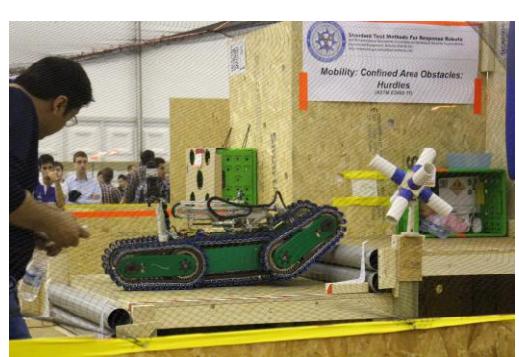

Robot Locomotion

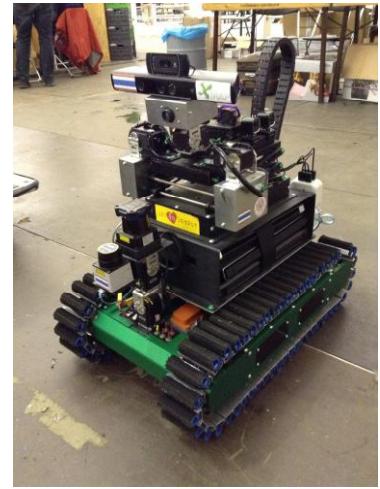

Regarding designing the robot locomotion system, the team has learned and improved through our team advisors "iRAP_PRO", "iRAP_JUDY" and "iRAP_FURIOUS" that have gained experiences from many competitions. In this competition, our team has designed new three robots consisting of two tele-operative robots and one autonomous robot. The team is looking forward to researching the better locomotion system.

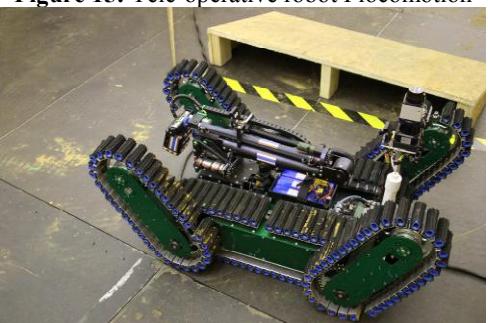

The locomotion of all tele-operative robots is made of the conveyer belt system that the team has examined from different surface characteristics of the terrain. Many parts of the robot have been improved in order to be tough, light weight and easy for maintenance as much as possible. Each drive system consists of two motor-- 24V, 95 rpm DC with gear-boxes for the movement on the left and right. The structure of the drive system is made of aluminum. The synthetic rubber is used to make the belt. The robots have a pair of flipper that can be rotated 360 degrees.

Other Mechanisms

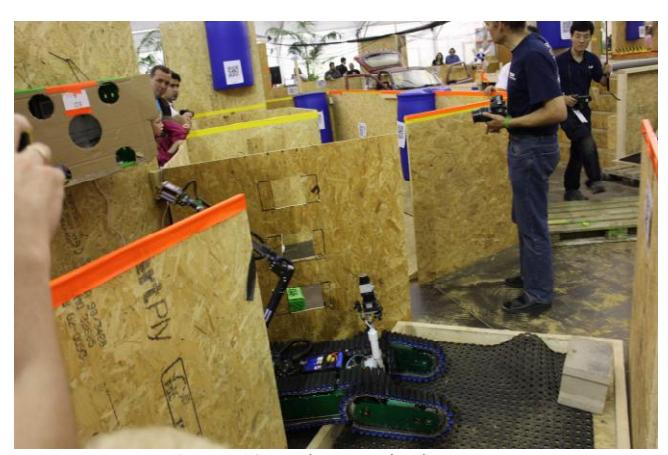

The manipulator of the robot arm is installed with a video camera and sensors. It shows the high mobility. If necessary, to increase visualization, it can be rotated 360 degrees and can be extended closer to the victim. Also, there is a gripper at the end of this manipulator. It is capable to move an object which weighs less than 5 kg, and can be stretched up to 1.50 m high from the floor.

Team Training for Operation (Human Factors)

The tele-operative robot requires a long training period. Competing members have to build challenging arenas in order to train the current operator. The team has designed planned in different regular competitions among the team members in order to determine the most suitable person for teleoperation.

This is our first time for the world class rescue robot competition. All of us do not have many experiences but the team has learned and trained with our senior the iRAP_PRO, iRAP_JUDY and iRAP_FURIOUS that won four times in the World Robocup Rescue robot competitions (2009 – 2011 and 2013).

Possibility for Practical Application to Real Disaster Site

Our main goal in this activity is for real disaster situation. The team has designed all the parts of the robot for real rescue application. We are confident that our robot is very useful for disaster defender but it is still not for water proof.

In the future, the team might improve and change a lot of robot parts for better results that may be able to prevent the water and fire. For example, the team will increase the toughness of some robot parts, create weightless robot, extend the effective range of WLAN's signal, and improve the quality of video cameras. The team plans to make them in the real application soon.

System Cost

iRAP_JUNIOR has three robots. Two of which are 2 tele-operative robots and the autonomous robot. The cost of parts on each robot is listed as follows:

Robot System Cost Breakdown - Part 1

Robot System Cost Breakdown - Total Cost

Lessons Learned

After the competition, the team knew how to make the better robots. The team learned the new technologies from other countries' competitors, learned how to be a good team. The team gained many experiences. Importantly, the team knew that "The great competition is not practicable, if you do not have a good teamwork."

References

1. R. Siegwart, I, Nourbakhsh: Introduction to Autonomous MRobots (2004)
2. Sebastian Thrun, Dieter Fox, Wolfram Burgard: Probabilistic Robotics (1999-2000)
3. www.xsense.com
4. www.hokuyo-aut.jp
5. Thermalert manual Raytek Corp., Available: http://www.raytek.com
6. Sommerville: Software Engineering
7. J.L.MERIAM L.G.KRAIGE: Engineering Mechanics Dynamics (Sixth edition)
8. ROBERT C. JUVINALL & KURT M.MARSHEK: Fundamentals of Machine Component Design (Fourth edition)
9. Michael J.Moran & Howard N.Shapiro: Fundamentals of Engineering Thermodynamics
10. William S.Janna: Introduction to Fluid Mechanics
11. Gregory Nellis & Sanford Klein: Heat Transfer
