RFC Stuttgart Team Description 2010

U.-P. Käppeler, O. Zweigle, H. Rajaie, K. Häussermann, A. Tamke, A. Koch, B. Eckstein, F. Aichele, D. DiMarco, A. Berthelot, T. Walter, P. Levi

IPVS, University of Stuttgart, Universitätsstraße 38, 70569 Stuttgart, Germany

Abstract The 1. RFC Stuttgart robot soccer team is used as a testbed for multi-agent software architecture principles in dynamic real time domains. The current research activities focus on a system for advanced data logging using augmented reality and automated camera guidance. It includes approaches from the field of real-time robot message logging, situation based camera control and 3D video visualization. Another research focus is a genetic algorithm for optimizing the motor control which enables our robots to adapt to different floor and carpet conditions.

Introduction

In this work an approach for advanced data logging in the RoboCup domain is presented which includes real-time robot message logging linked to video recording and situation based camera control in combination with 3D rendering algorithms. The RoboCup domain has become an important testbed for robotic applications during the last years. The department Image Understanding of the IPVS - University of Stuttgart is participating with its team 1. RFC Stuttgart in the robotic soccer middle-size league. In this league a team of five autonomous robots is playing together. The robots share and merge information in order to show real team play and cooperative actions. As the robots are communicating data over a wireless network there is the possibility to log, visualize and analyze that data during matches for analyzing for debug purposes. Due to the rapidly growing complexity of the robots software system, which acts in the real world, it becomes more difficult to debug the system in real-time. As a consequence powerful tools for collecting and analyzing data are very important. Those tools have to work in real-time during a match as well as in the post game analysis.

The second part of this team description paper describes an automated configuration for motor controllers. To optimize the low-level drive-behavior of the robot to get best driving performance we are developing a genetic algorithm approach for optimization of the motor controller parameters of a robot. The goal is an automatic learning approach to obtain the best parameters for the controller without any manual override.

Related Work

As the autonomous camera man includes techniques from a lot of different fields, we want to give a short overview over some articles which mainly influenced the development. The information that is exchanged between the robots to generate a common world model [BKL03] is merged to reduce noise in the measurements as described in [BKZ+08]. The team behavior of the cooperative robot system is a result of negotiations, based on a multi agent system (MAS) [Mus00] and can be compared to [Tam97]. The behaviour can be configured by XABSL [LBBJ03] and uses methods like selection equations and interaction nets that are described in [LSZ+07] and [ZLB+06]. The autonomous camera man enables an analysis of the team behavior by visualizing the information that is exchanged between the robots and which leads to the decisions in the teams strategy. The basic approach for the camera location determination problem is based on the work of Bolles and Fischler [FB81].

To optimize the low-level drive-behavior of the robot we are developing a genetic algorithm approach for optimization. As shown in several approaches [Gaw86], [MP00], [MP00], [BCP01] self-tuning PID controllers have been developed for several systems using several different methods. Gawthrop [Gaw86] showed an approach of a hybrid PID self-tuner by combination of a continuous time process model and a discrete-time self-tuning controller. Huang and Lam [HL97] introduced a method based on genetic algorithms for automatic tuning of proportional, integral and derivative (PID) controllers in Heating Ventilating and Air Conditioning (HVAC) systems to achieve optimal performance. Genetic algorithms, which can considered as search methods based on the theory of Darwin's natural selection, are used in finding near-optimal solutions in complex problem spaces since they have been proved to be robust and efficient.

Debugging in a Multi-Agent Robot System

In order to improve the general logging capabilities of robot systems and to visualize the corresponding data in a way that is easy to understand for humans we implemented an autonomous camera man and a visualization using augmented reality. The system consists of a camera, a pan-tilt unit (PTU) and a software for controlling both, which is connected to the team's communication channel which our robots are using during a match, to automatically steer the PTU where the camera is mounted on. As a consequence a whole match can be filmed autonomously without human interference. Furthermore the system is rendering all the information gained from the robots into the live image of the camera. This allows for interpreting all scenes in a much better way. Moreover it is possible to save the whole video stream and data stream from the robots. Consequently the data and video stream can be replayed and even the kind and amount of information rendered into the video stream can be changed and adapted. Such a system is based on different approaches from autonomous systems, 3D visualization and vision.

Automated camera guidance

The PTU is controlled via a serial device, which makes it impossible to steer the device in real-time. The only information available consists of the commands that have been sent to the device. In order to merge the coordinate systems of the video and augmented scene, we have to know precisely the current orientation of the camera. To solve that problem an observer tracks the angles of the PTU.

The coordinates of the object of interest are first chosen due to the current state of the shared world model. Those are transformed to the camera frame and the corresponding pan- and tilt angles are calculated. They are sent to both the device and the observer. The visualization process always uses the values of the observer. Correction of the estimated position of the observer is done via "bang-bang control", because the only fact known when reading the values from the device is, whether the observer has already been in position or not. The step of adjustment can be chosen by the time difference between PTU and observer in reaching the wanted position. Experience showed that the acceleration phase of the stepper engines is negligible small. So the observer equation can be obtained as

$$\theta_{n+1} = \theta_n + (\theta_n - \theta_C)(t_{n+1} - t_n)v_C\delta v_e \delta v_e = t_f^{obs} - t_f^{pt}$$

where θ^n is the pan-, resp. tilt-, angle internally calculated in the observer, variables with subscript. C are the values of the latest command that has been sent to the real PTU.

Augmented reality

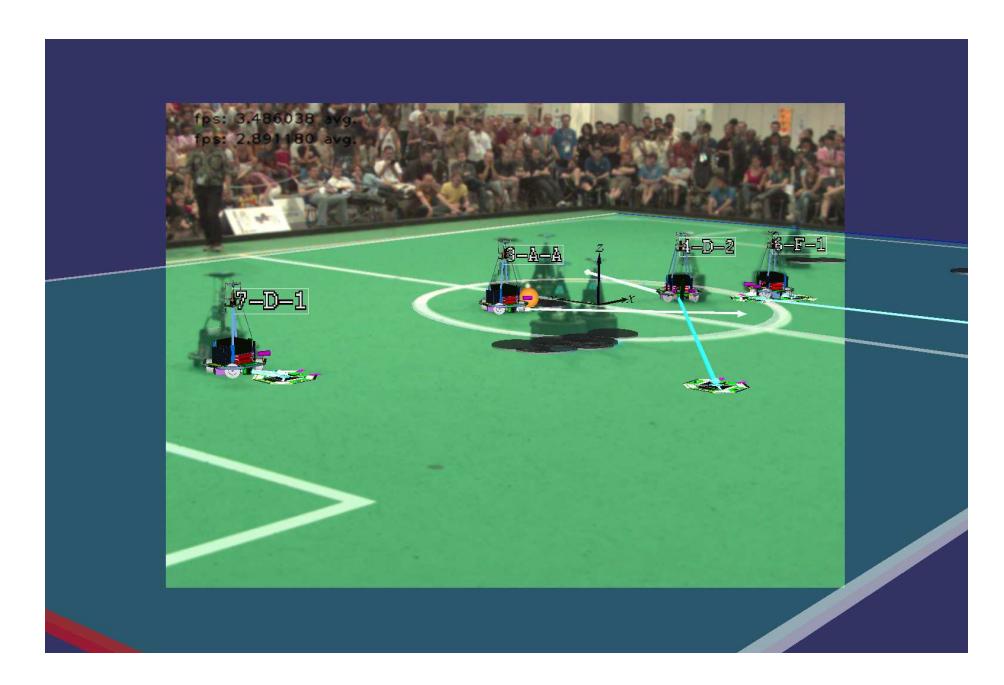

The grabbed image from the camera is directly mapped on a GL texture, This enables an overlay with information from the robots world models and any 3D mapping of the image in our Augmented Reality Scene. Therefore the field of vision is not limited to the view of the camera, as shown in Figure 1. It can be extended to include more information that is exchanged between the robots but not included in the field of vision of the camera.

All information for the augmented scene is gathered via the communication of the robots using a message dispatch server. The robot control graphical user interface (RCG) holds a copy of all transferred data. Usually the ball is used as an indicator for the most important view frustrum. But in some cases another object might be of interest, e.g. when the ball is shot with high velocity so that it is impossible for the robots to track it. If our team tries to score, the opponent's goal is chosen as center for the camera direction. Our goalkeeper is centered when the opponent is attacking our goal.

Camera Pose Framework

In order to overlay the abstract information with the video stream a basic necessity is to find the camera position with respect to the RoboCup game field. The cameras coordinates frame is not known in the soccer field's frame. We know the 3D-coordinates of the corners of the field, which are our control points. As the camera is attached to a PTU and since only one or two corners of the field are found together in one image, the idea is to focus the control points step by step, and to measure the corresponding PTU angles. Afterwards the camera location can be determined as described by Bolles and Fischler [FB81].

An extension of this method is necessary because the orientation of the PTU mounted on a tripod can differ additionally from the fields coordinate system. The new approach consists of comparing the angles used by the PTU to focus the control points, and the theoretical angles it should have used if there was no angle offset. There are three types of angle offsets for the camera : pan, tilt and pitch. The angles measured are pan und tilt, and we consider these angles as 2-dimensional points with pan as x-coordinate and tilt as y-coordinate, so that the pan offset and tilt offset are equivalent to a translation (Pan and Tilt are the only two angles which are driven by the PTU). The pitch offset is equivalent to a rotation with the origin of the frame as center of rotation (the Pan Tilt unit is mounted in a way that the 0-position is also the axis of rotation for pitch). The pitch offset is computed with a Principal Component Analysis (PCA): it's the angle between the two principal components. Then the pitch offset has to be compensated for computing the other offsets, rotating the measured values by the previously computed pitch offset. The pan offset and the tilt offset can be derived simply by translating between the theoretical and compensated values.

Analysis and Export

During a RoboCup match our automatic cameraman can record a video and the communication between the robots. Afterwards it is possible to replay the video and to include the overlays generated from the messages of all robots. The possibility of modifying the speed of the replay or to display each image of the sequence step by step enables a detailed analysis of the robot's interpretation of sensor data. Changes in a robot's role or strategy can be compared to Positions of obstacles in the robot's world model and to the real world at the same time. An export of a video including the camera images and all overlays enables an exchange of the logs between the teams and a simple playback of a RoboCup game on any pc.

Self-learning motorcontrol

The motor controller [Max10] of the robot has a set of many parameters that can be changed in order to achieve the best driving-performance according to the environment [Lip06]. To evaluate such a set of parameters, it is necessary to run a short test drive that takes several seconds. With billions of possible parameter combinations, a simple try-and-error method will take far too long to reach a solution. Thus we are forced to use methods from the machine learning theory. Beside methods of reinforcement learning another promising approach to solve this problem is the use of genetic algorithms [Gol89],[JJdSC+03], [ES03],[MYK99], [Gaw86]. Genetic algorithms, which can be considered as search methods based on the theory of Darwin's natural selection, are used since they have been proved to be robust and efficient in finding near-optimal solutions in complex problem spaces.

Genetic algorithms

The core part of the genetic algorithm (GA) is its fitness function where the test drive is performed. This makes it the most time consuming part of the optimization process - therefore one of the main challenges is to minimize the number of calls of the fitness function. For example it can be an advantage to let the parents survive if they have a higher fitness than their children. On the other hand, this can be a problem if the population is very small and the genetic variance becomes too low [ES03]. To prevent this, it seems reasonable to use all individuals for the recombination and to make the selection only by comparing the fitness of the parents with their children. At that point, we have to decide whether comparing only the children with their own parents or sort the fitness of all individuals and take the best, independent from which generation they are. Another interesting approach is to switch after a few generations to evolution strategies. This is useful if we are close to the global maximum and want to exploit it.

Fitness function

The most difficult part is to find a good fitness function with some criteria to determine how well a solution performs. Therefore we give a certain desired speed directly to the low-level controller and measure the effective speed of the wheels. The goal is to minimize the difference between these two values. For evaluation purposes we create a test-run with different speeds, unit steps, ramps and so on. To calculate the summarized error of one complete test-run we are evaluating different methods (e.g. quadratic mean). The only limiting factor is the time we need for such a run. Another problem is the uncertainty and the slippage due to the wheels during the acceleration in the test-runs that results in a change of the direction of the robot. This requires a permanent check of the current position which can be also one criteria for the fitness-function. The state of the battery charge is also a variable we have to check for each run, because a low voltage could be results in negative behavior changes. The mathematical description of one of our fitness-functions is shown in the following:

$$\alpha(t+1) = \alpha(t) + (abs(v_{set} - v_{real})^{\lambda}$$

$$fitness(t) = \frac{\gamma}{(\alpha(t) - \alpha_{min})}$$

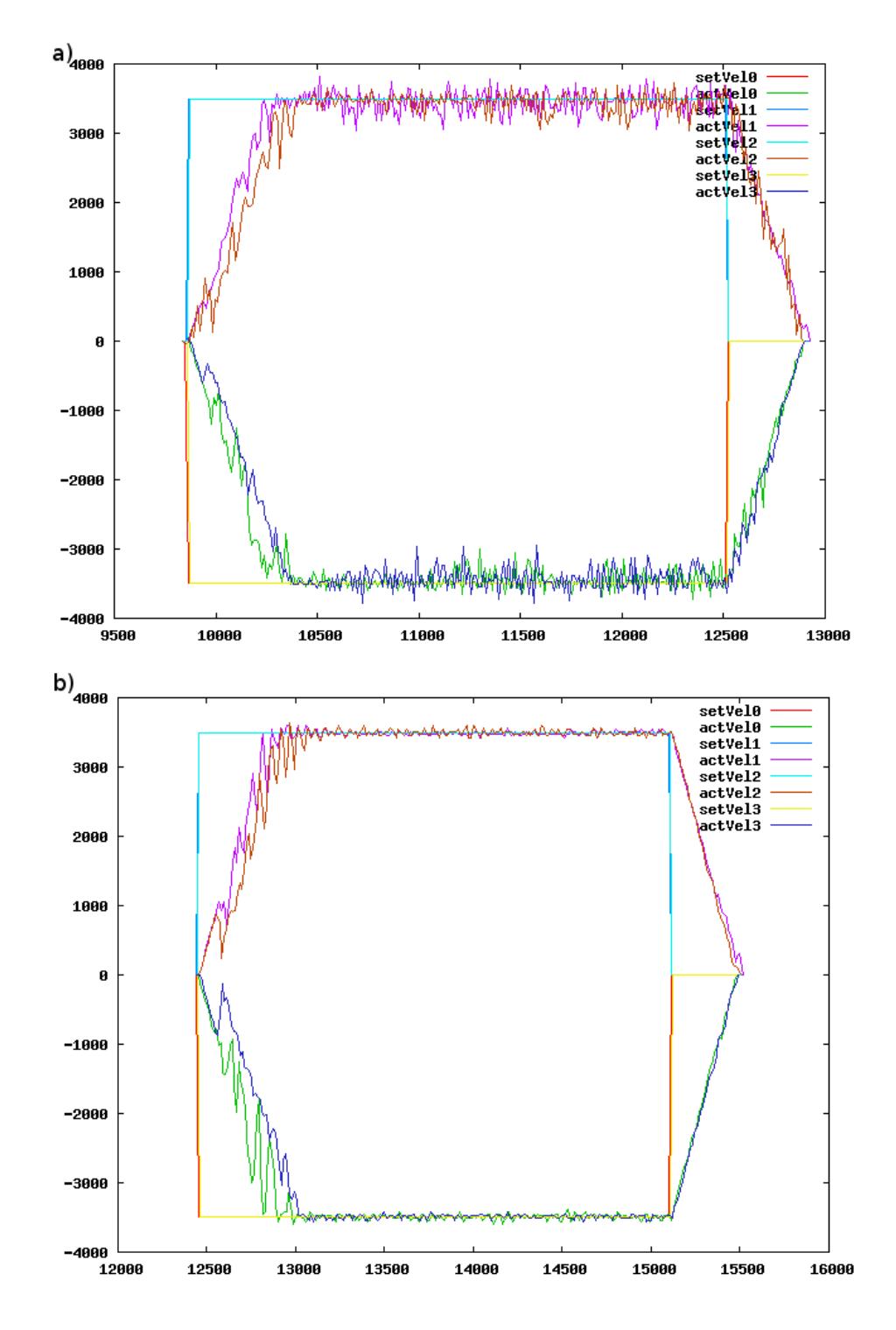

Where γ, α_min and λ equates to a learning-rate parameter. v_set corresponds to the angular-velocity set by the controller to the motor and v_real corresponds to the real values (measured by odometry).

Conclusion and Outlook

In this paper we presented an approach for a self-learning configuration of motor controller and an autonomous camera man as a powerful data logging tool. Practical experimence showed that the approach for logging game data in a RoboCup match makes it much easier for the developers to debug robot software using a 3D visualization which is easy to interpret. As a further step the system should use the panorama camera LadyBug II, which is able to create 360degree images. Transferring the camera location determination problem to such a system will be a new challenge.
