DreamWing2D Simulation 2D Team Description

Huilong Zhang, Fajun Zhao, Yanan Fan, Changning Huang, Yu Gan, Binbin Ruan

Department of Computer Science and Technology, Anhui University, China

Abstract This paper briefly describes the background DreamWing2D 2012 and recent research results of Dreamwing2D 2012. First, we apply the Q-learning to the base of the agent's intelligence assessment system, so that the player agent's action can gradually approach the optimal strategy of action. Furthermore, through enhancing the cooperation between the side back players and the side forward players, they can intercept the ball easily and prevent the opponents from dribbling and passing. Besides, we have modified other aspects, such as formation, marking, etc.

1. Introduction

Simulation 2D soccer team of Anhui University was founded in 2006, and made the top 24 results in the RoboCup ChinaOpen 2006. In 2007, we were the top 8 teams in the Robocup ChinaOpen 2007. In 2009, we reached 2nd place in the RoboCup 2009 of Anhui Province. Then, we took part in the RoboCup ChinaOpen 2009 and got the 12th place of soccer simulation 2D. In the RoboCup ChinaOpen 2010, we got the 7th place. And in the RoboCup ChinaOpen 2011, DreamWing2D achieved a breakthrough in history and won the 3rd place.

Dreamwing2D 2012 inherits from Dreamwing2D 2011 which is based on released code of Agent2D-3.1.0, but she has a significant improvement. Although our team is not powerful enough, we are becoming stronger and stronger. We hope to gradually improve ourselves by participating in more games.

2. Q-learning algorithm

2.1 Frame of agent2D

DreamWing2012 is based on the concept of chain of actions which is put forward in Agent2D[1], through which the agent can make the next a few cycles of action in series instead of only deciding what to do for the next one cycle. Through the Q-learning algorithm, the agent can choose each action of every chain of actions. That is to say each cycle agent takes max Q value as the best action.

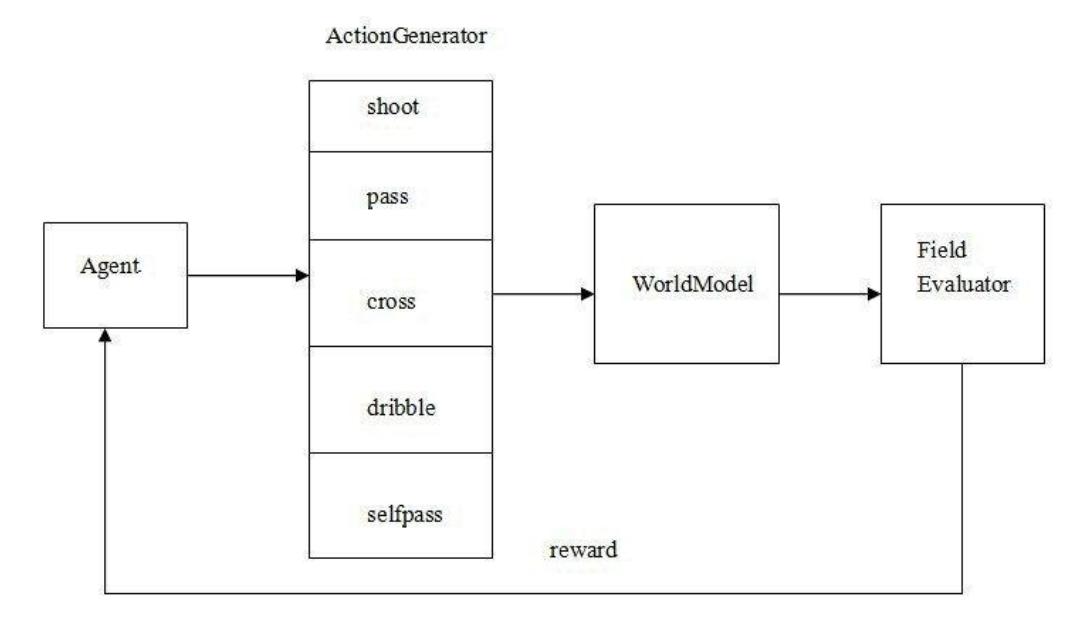

The framework of agent2D is shown in Figure 1.

2.2 Q-learning

As mentioned before, the choice of actions of Dreamwing2D 2012 is achieved by Q-learning algorithm. In Fig.1, Dreamwing2D 2012 applies the Q-learning algorithm to the Field Evaluator, so that agent has a better performance in the choice of actions.

Q-learning algorithm mainly relate to three issues: the action set, the state set and the reward. [5,6,7,8]The description of the action set is 5 actions in ActionGenerator : shoot, pass, cross, dribble, selfpass. By the discrete of many states, Dreamwing2D 2012 takes a number of representative and significant real-time variables of pitch as state set we need. The calculation of the reward is the core of Q-learning algorithm.

The details can be described as follows:

• (1) Our goals, reward=1
• (2) Ball reaches the shooting points, rewards=0.9
• (3) Ball out of pitch, reward=0
• (4) None of the above, reward=basic reward of region (BRR) + reward within the region (RWR)

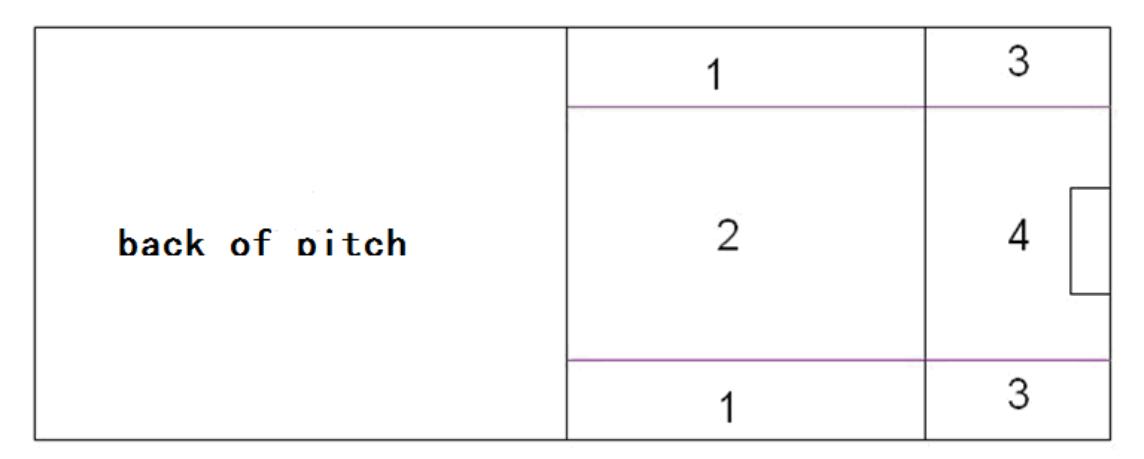

We integrate the various factors of front of pitch especially the penalty area and calculate the shooting points, through which agent can determine to shot or not. In (4), we divide the front of pitch into 30*10 small regions to get agent's position. In order to get reward, we divide the front of pitch into 4 large regions (shown as Fig.2.). The BRR of the region where the ball is is the current BRR.

3. The Improvement of Formation and Skills

Thanks to Dreamwing2D 2012 uses Agent2D as the base code, so she also uses Agent2D's Formation [1,4]. However, through modifying of the basic formation, we have our own characteristics of the formation. For instance, the side back guard can block the opponent players and they cannot easily dribble through flank by making the position of guard closer to region of flank. Besides, the formation of the formation files is only a basic moving point. Dreamwing2D 2012 still modifies the moving points based on basic points such as marking. In order to implement marking in different play mode, the agent should move to the particular position which is based on the opponent players and don't change our defensive formation. In this way, when the opponents pass the ball, our players can intercept the ball easily.

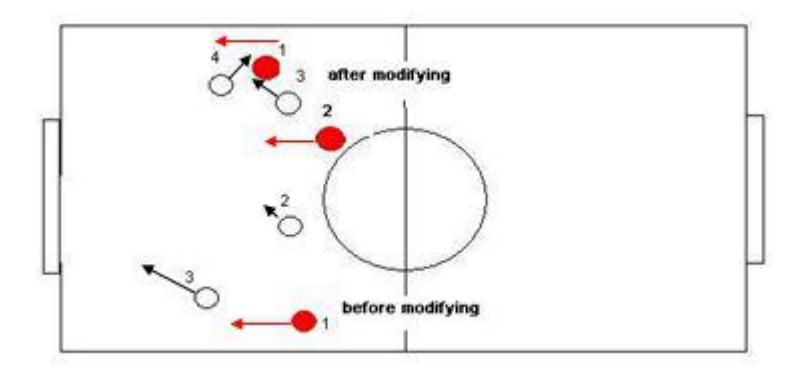

Besides, we have also enhanced the back guard's ability of force snatch by enhancing two players' coordinating.[6] In Fig.3, before modifying, when the offensive player dribbles breakthrough from side, the defensive player doesn't intercept until it reaches the penalty area. But at this time they have threatened our goal, and they can goal easily. In Deamwing2D 2012, we implement force snatch through two players by modifying the players' moving points and improving the flexibility of the players. In Fig.3, the defensive player (num 4) seals the offensive player's (num1) route, and then the side forward player (num 3) force snatches from the flank. At the same time, the position of num 3 is between the position of num 1 and num 2. It prevents num1 from passing the ball to num 2. The statistical data show that in this way, the success rate of intercepting is very high.

4. Conclusion and Future Work

Through a large amount of training, the Q values gradually converge to stable vales in different states. After training, the agent is put into the games, according to statistical data of the number of goals, we get great results. Especially when we put the training scenarios into edges of penalty area, the agent can dribble through goalie and defender flexibly in small-scale after training, and greatly increase the number of shooting.

Table 1. The result of competing with some teams

In table 1, we list goals and the percentage of winning which are Helios_Base, Dreamwing2D 2011 and Dreamwing2D 2012 competing with excellent code based on UVA and Helios_Base after 100 games. In table 1, we can see that Dreamwing2D 2012 has a great improvement so that goals and winning have a leap.

Although Dreamwing2D 2012 has a great improvement related to the earlier version, she is not perfect on the whole. We will focus on the researching of the receiver when passing and completing the communication system in future work. We believe Dreamwing2D 2012 will have better performance in future games!
