Alice2021: Team Description Paper
Fan Wang, YuTang Guo, XingQi Zheng, XinYu Liu
Robotics and Innovation Technology Lab School of Computer and Information HeiFei Normal University,P.R.China
http://www.rctools.sourceforge.jp · http://pumath.dl.osdn.jp/rctools/32271
Abstract This team description paper mainly explains the work of Alice2D at this stage.According to the characteristics ofour team, based on the past research, our team is committed to studying the differences of players' roles and reinforcement learning algorithm,changes to the evaluator,formation optimization. After many tests, we continuously optimize the team code, which has greatly improved the performance of the court.
Keywords: Player role differences, Monte Carlo tree algorithm, Decision tree
1 Introduction
Alice2D was founded in 2016, by the HefeiNormal University Student Innovation Laboratory of a group of robot-loving soccer students. This is the fifth time we apply for the chance to participate in RoboCup 2D competition. Our team code isbased on Agent2D3.1.0[1] which was released by Hidehisa Akiyama. It also includes fragments of released code of Helios2008[2]. We sincerely appreciate the assistance from Hidehisa Akiyama and allof the related open source developers. In the 2017 World Tournament, the team won the seventh place in the regular season and won the championship in the challenge, 7th place in the 2018 World Cup regular season.In China, our team is also named Miracle,winning the third place in China division of the 2019 RoboCup World Cup and the third place in China division of the 2021 RoboCup World Cup.
2 Focus of team science
On the basis of manual strategy research, our team made improvement, planned for the role of agents in the course, and adopted artificial intelligence methods, namely reinforcement learning and decision tree learning. In the process of reinforcement learning, by constantly trying actions and observing the rewards of actions, the agent gradually chooses the beneficial actions in various situations, so as to obtain a high cumulative reward value in the process ofinteracting with the environment.
3 Player role differences
Robot Soccer players have different positions, including striker, center forward, midfielder, defender and goalkeeper. Different players have different strategies. For example, strikers tend to attack, midfielders tend to organize, and defenders tend to defend. Due to time constraints, our team only made improvements on forwards and defenders, and built different models according to different strategies and movements. The following are introductions based on player roles.
Forward Player

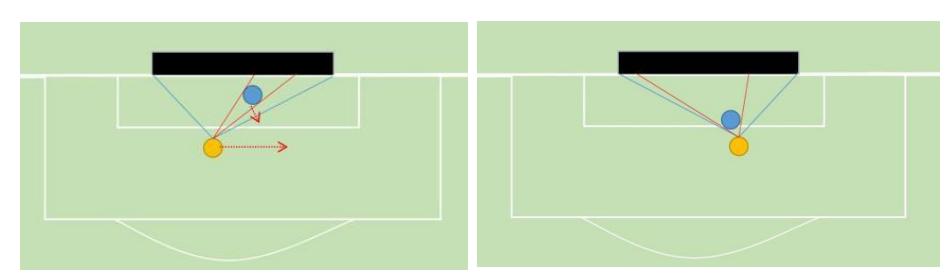

When the striker in the chart on the left side of the position, the goalkeeper is located in nearthe goal area, then shot range should be in the range of the two red and blue line, the shooting range larger, shooting success rate ishigh, but if the striker missed shot time, direction along the dotted line to the right, the other goalkeeper will choose attack, narrowing the scope of a shot. At this time,the shooting range is greatly reduced compared to the Angle of the shot just now, and the success rate is greatly reduced. Therefore, the success rate of the shot will change with the timing of the shot[3].
In RoboCup2D, shoot_success(dist, $\alpha$, $p$, $\varepsilon$ )is[4]:
$$\text{shoot_success} (dist, \alpha, p, \varepsilon) = \frac{1}{\varepsilon+1} * \left{ \frac{1}{(1+dist)^2} * \frac{\alpha}{\pi} + \frac{p^*\alpha}{p_{\max}(1+dist) * \pi} * \left[1 - \frac{1}{(1+dist)^2} * \frac{\alpha}{\pi}\right] \right}$$
(2-1)
α indicates the perspective from which a forward player can shoot,dist indicates the shortest distance to shoot,p indicates the ability value of a forward player,ε indicates the interference factor of the goalkeeper[5]。
$$\alpha = \frac{\arccos[(x_1-x)(x_2-x)+(y_1-y)(y_2-y)]}{\sqrt{{(x_1-x)}^2+{(y_1-y)}^2}*\sqrt{{(x_2-x)}^2+{(y_2-y)}^2}}$$
According to (2-1) and (2-2), players should try to choose left or right side to attack the goal, and try to avoid attacking the goal (a) in the area directly facing the goal. This method can be used for reference. On this basis, we optimized the shooting strategy based on this point.While choosing the left or right side to attack the goal, we circled with the opposing player to find the best shooting point (b).Practice with 100 shots:
Table 1. Shooting training results
| Before and after improvement | goals | Percentage of goals scored |
|---|---|---|
| before improvement | 49 | 49% |
| after improvement(a) | 65 | 65% |
| after improvement(b) | 71 | 71% |
Defender player

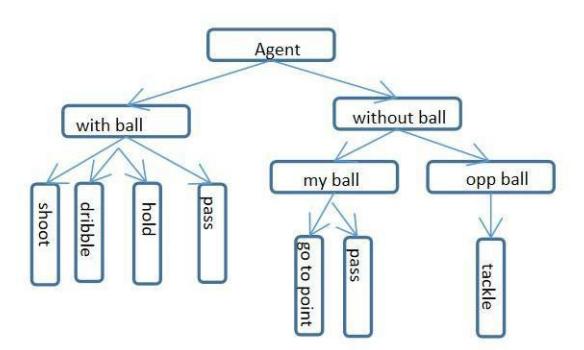

The quality of defense isthe key to victory. The intercept plays an important role in the defense process. Whether the intercept is successful or not, players have to stop on the floor for several cycles to achieve the actual needs, so the strategy of intercept is bound to affect the cooperation of the whole team. At this point you need to change the probability of the tackle in the hope that the tackle will be less costly.The traditional player execution strategy is based on the decision tree to select the action[7,8]. The execution process of the decision tree isshown in the following figure:
Our team's defense isbased on possession and off-possession strategies. Focuses on producing many different actions for the chain action model, the holder uses the evaluation function to assign different chains to operate on a point, and then selects the highestpoint of the chain of operations to be executed.
4 Reinforcement learning algorithm-Monte Carlo algorithm
Our Alice team has studied the combination of Monte Carlo algorithm and action chain in the past. Monte Carlo algorithm is similar to strategy iteration in dynamic programming, which also includes strategy iteration and strategy optimization[6]. Monte Carlo algorithm is suitable for learning problems in unknown environment.

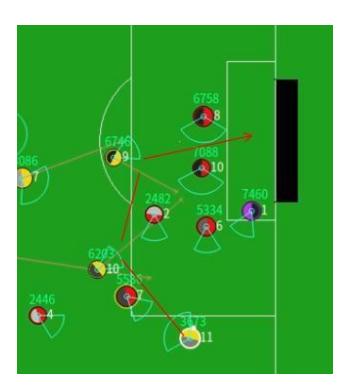

Agent2d basic code generates two depth chain action, the basic model of evaluating the code only consider the first step in the operation, lead to can't choose the optimal solution, so we change the basic code evaluation model, based on the original to form the best action chain reaction, we added a chain action depth search depth and evaluation model[9]. The creativity of the algorithm is to follow up on the original basis, improve the decision tree for the position of the distance from the goal, such as outside the penalty area, inside the penalty area, and optimize the movement chain.
5 Changes to the evaluator
Our team modified the evaluator, including the modification of the goal area, the modification of the actions executed in the previous period and the evaluation of the player types. The evaluator was appropriately modified in combination with the formation of our team in order to expect the optimal actions to be executed.
6 Formation optimization
Analyze the RCG file[10] to obtain the data file containing the coordinates ofeach player in each period. The two-dimensional coordinate source data needed for the initial experiment can be obtained, and then the source data are mined and analyzed.
The server has been updated, which causes a deviation between the previous server version and the existing server version. Fix formation parameters, debug and change.
7 Summary and Outlook
Over the course of the year, our team made improvements in combination with formations and evaluators, continued to refine the decision tree for Monte Carlo algorithms, and combined strategy modifications for on-court player types. Today, our team is still exist many problems need to solve, after last time communication with yushan team learning, inspire the study of digital twin framework[11], but our team merely in theory.Our team also attempts and manages to implement a more stable multi-layer action chain based on the relevant principles in TDP of HELIOS2012, and to optimize the state-space search by means of the addition of direct pass, short dribble and other actions between the two layers[12].
In the future, our team will continue to scripting language, data mining, data, deep learning log analysis, etc. On the basis of manual strategy, high level action decision making is studied.
The RoboCup is a good opportunity to learn from other teams, we will learn the strengths of other teams, improving our weaknesses. Wish the RoboCup simulation 2D soccer is getting better and better.
