EMPEROR Soccer Simulation 2D Team Description Paper 2023

Erfan Fathi, Soroush Mazloum

Abstract This Team Description Paper introduces the overview of recent works done in EMPEROR team. Recently we have been working on several effective algorithms for optimizing different actions. Some of these actions which are presented more later are through pass which is important for better team performance, defending strategy that has the most effect on the result of a game and decision making that chooses the best action for the situation.

1 Introduction

EMPEROR team members were gathered in 2022. The target was participating in IranOpen 2022. The result of that participation was getting the 6th place in Soccer Simulation 2D-Starter league. One year later, in IranOpen 2023, we managed to get the 1st place in Soccer Simulation 2D-Starter league.

Note: We are using Cyrus2D Base [1] as our base for Soccer Simulation 2D. Cyrus2D Base is created by merging Helios base (Agent2D) with Glider2D base and applying features from Cyrus2021, the champion of RoboCup2021 in Soccer Simulation 2D league.

Now, we are going to check some articles published by other Soccer simulation 2D teams. HELIOS developed "Player's MatchUp" algorithm for exchanging players' positions during the game for better team performance [2]. CYRUS uses opponent's pass prediction for marking and teammate's pass prediction for unmarking [3]. Hades2D improved players' dribble with splitting the generated sector and scoring them for the best decision [4]. Tehran2D improved defense by developing a block algorithm [5]. Persepolis optimized its offensive strategy by randomly placing players in the soccer 2D field and training them for the best attack [6]. MT2022 used HFO (Half Field Offense) for training and testing their shoot algorithm [7]. Apollo2D developed Tree structure model and A* search for chain pass [8]. Alice uses Monte Carlo tree search algorithm to find the best chain action possible [9].

3.1 Through pass summery

Through pass is a good way to break into the opponent's danger area but it's impossible for the player with the ball to calculate all the possible passes in one cycle (0.1 seconds). To tackle this problem we used messaging between the player that has the ball and the other players. The players except the player with the ball calculate the possible points to receive a through pass and the acceleration needed for the ball to reach that point exactly when the player reaches there. Then the player sends this information to the player with the ball.

In fact, the incentive of this idea is to be distinctive. We know that there is a limited period of time to review each order. This has created innovation in the configuration of the orders of the EMPEROR's team.

Messaging in the team provides an opportunity to compensate for the lack of review time. So, instead of the player with to ball going through the process, we can proceed with the player who does not have the ball. Then, by messaging between the players, the information needed to pass is sent to the player with the ball.

In the last step, all the eligible players who sent message to the player with the ball should be prioritized. The EMPEROR team uses Perceptron Neural Network Algorithm for this task.

Now let's explain each step more:

First step: As we mentioned, all the steps are calculated by the player who may receive the pass. Firstly, the player must choose some points that are effective for offense and going deep in opponents' defense (See Fig. 1 and Fig. 2). Then the player should check the pass routes so opponent players won't be able to intercept the ball.

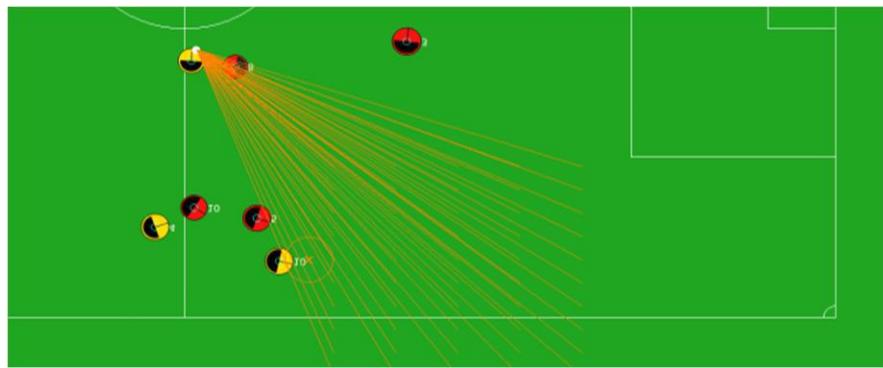

Fig. 1. Points checked by player no. 11.

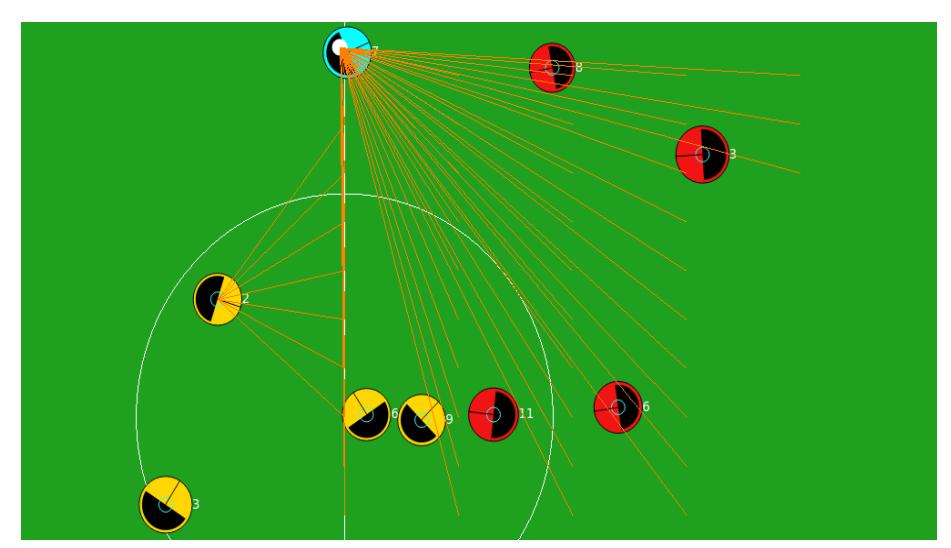

Fig. 2. Points checked by player no. 9 and player no. 2.

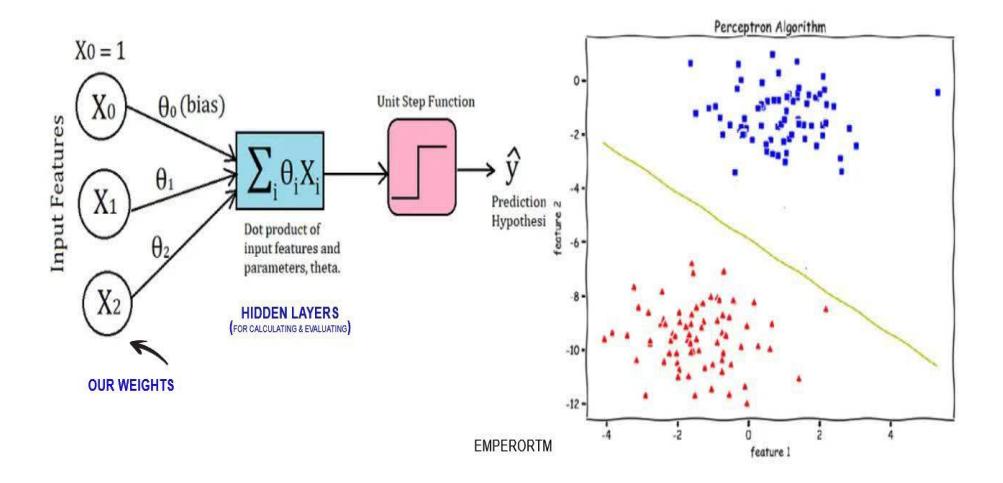

Fig. 3. This is how it calculates and evaluates our data.

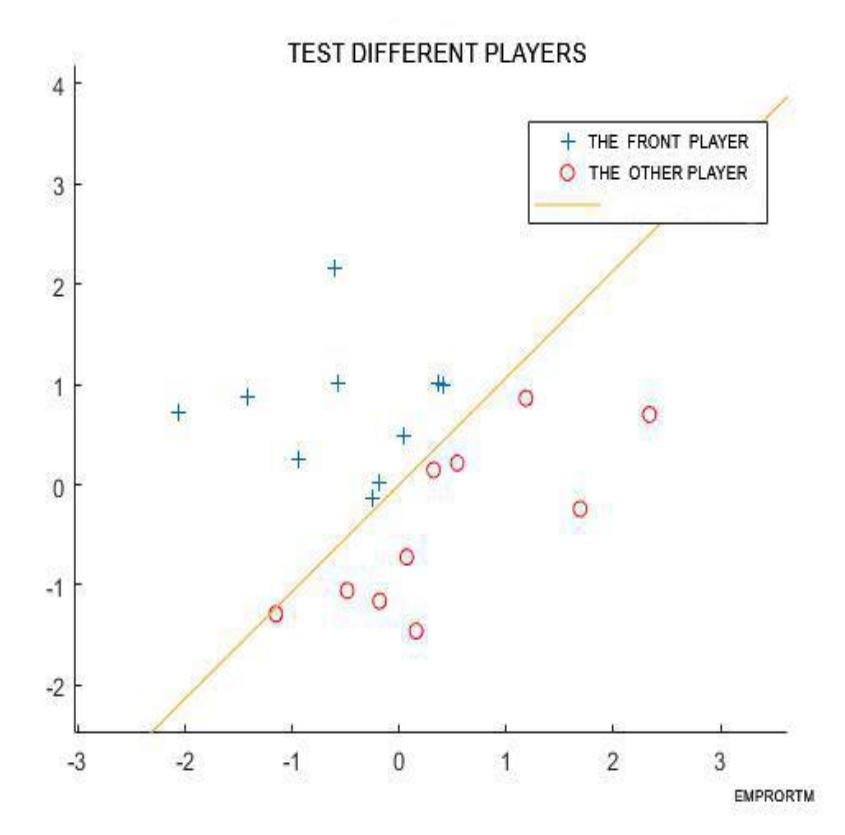

Fig. 4. This is how it calculates and evaluates our data.

3.2 Pass security

For checking the pass security, player calculates the inertia point of the ball and makes sure no opponent will intercept the ball in the middle of the way. This way may take longer but it is safer. Moreover, inertia point helps us to calculate the acceleration needed to apply to the ball.

4.1 Defense Layers

Layers: Our defense line is basically made of three layers. Each layer is responsible to do certain jobs.

First layer is the back layer that is made by players no .2 – 5.

Second layer (middle layer) is made by players no. 6 - 8.

The final (front layer) is made by players no. 9 - 11.

Layer 1: This layer is responsible for marking opponent's forward players and not letting them to scape and receive a through pass.

Note: When marking opponents' forward player, our player should go to a X coordinate, less than opponent player's X coordinate so if opponent player wants to scape, our player has time to react.

Layer 2: This layer prevents opponent from dribbling forward and if needed, intercepts them (See Fig. 5). Also it often presses opponent's players (See Fig. 6) and helps layer one in inside penalty area marking. Players in this layer spend the most energy compared to players in other layers because they take part in both defense and offense. So it is necessary for them to move with a less dash power (They have to move slower).

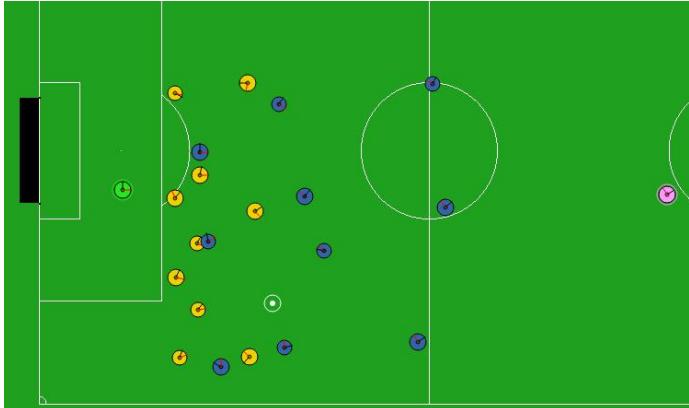

Fig. 5. You can see our middle line is helping defense line.

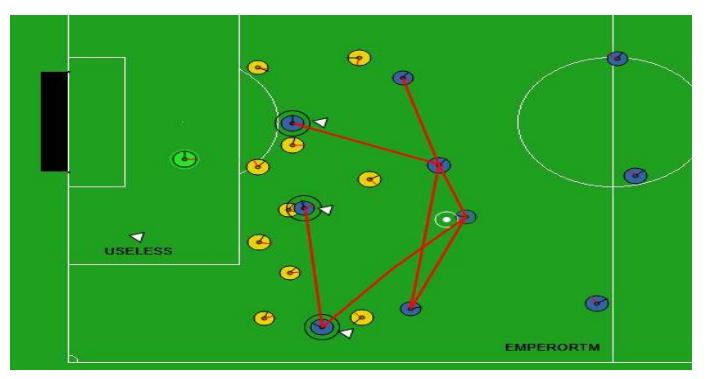

Fig. 6. This figure shows how our defense makes it difficult for opponent to get near our goal.

4.2 Defending near our goal

Obviously, it will be critical if ball gets near our goal. So positioning will be more important than before. As a result we manually wrote positions for the situations in which ball's X is less than -30. This method makes is harder for opponents' positioning near our goal. (See Fig. 7)

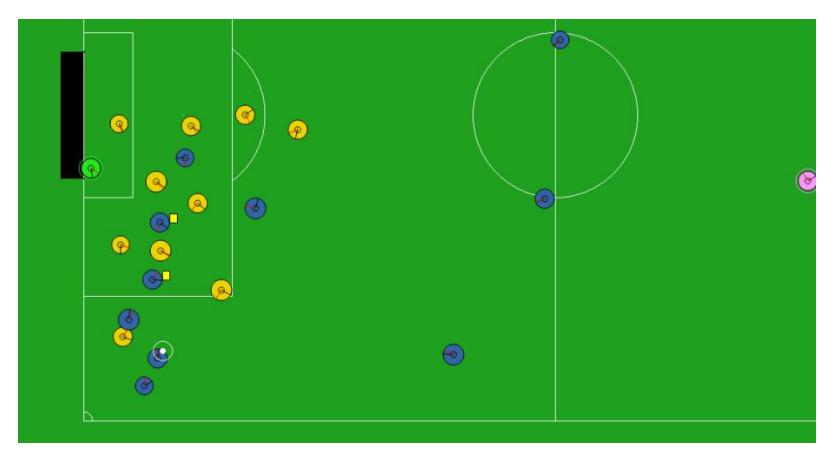

Fig. 7. We manually entered positions for the players.

5.1 Entropy

As mentioned above, the same thinking is not effective against different teams. Let's look at a simple example to explain how to make a decision in different situations to pass or dribble.

Entropy is a method to determine the degree of purity, the amount of disorder or impurity (correctness of our decision) of a set of samples.

To explain more, if we have a set of data such as $\underline{S}$ that a certain feature divides them into $\underline{C}$ different classes, then the entropy of the set $\underline{S}$ is equal to:

$$Entropy(S) = \sum_{i=1}^{c} -pi \log 2 pi$$

As a simple example:

C1 2 $$P(C1) = \frac{2}{6}$$ $P(C2) = \frac{4}{6}$ C2 4 $$Entropy = -\left(\frac{2}{6}\right)log2\left(\frac{2}{6}\right) - \left(\frac{4}{6}\right)log2\left(\frac{4}{6}\right) = 0.92$$

Note: If our entropy value is close to zero, it means that our purity value is at maximum, but if our entropy value is close to one, at most half of our value is impure.

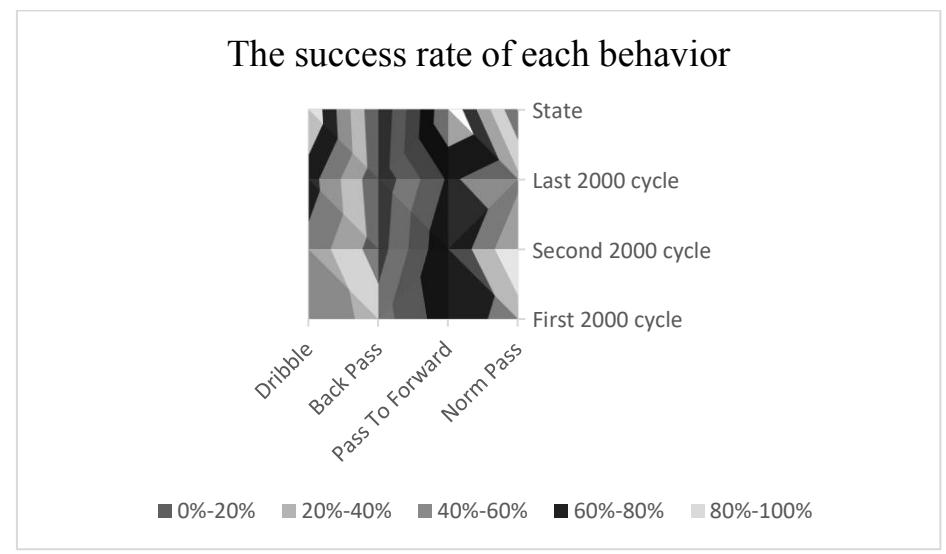

Table 1. The success rate of each behavior

ENTROPY (data)	First 2000 cycles	Second 2000 cycles	Last 2000 cycles	State
Dribble	(6/10) 60%	(5.4/10) 54%	(7/10) 70%	TRUE
Back Pass	(3/10) 30%	(1/10) 10%	(0.5/10) 5%	FALSE
Pass To Forward	(7.3/10) 73%	(8/10) 80%	(6.3/10) 63%	TRUE
Norm Pass	(5/10) 50%	(2/10) 20%	(4.5/10) 45%	FALSE

To illustrate:

$$Entropy = -(\frac{6}{10})log2(\frac{6}{10}) - (\frac{4}{10})log2(\frac{4}{10}) \approx 0.97$$

As it is clear from the above entropy result, for the dribble success rate in the first 2000 cycles, less than half of our situations are unsuccessful. So, team's priorities need to be changed.

5.2 Information gain

The information gain of a behavior = the amount of entropy reduction that is achieved by separating samples through this feature.

The information gain Gain(S, A) for a similar feature A compared to a set of examples S is defined as follows:

$$Gain(S, A) = Entropy(S) - \sum_{v \in Values(A)} \frac{|Sv|}{|S|} Entropy(Sv)$$

In this way our team can make an acceptable decision during the game.

6 Future ideas

Storing information in certain files about opponent behaviors for use during the game.
Reinforcement learning in payers' attack system.
