Mithras3D Team Description Paper 2013

Nazanin Sadat Dastserri, Atieh Alsadat Moosavian, Armita Sabeti Ashraf, Sara Javadzade No, Hanieh Sarlak, Sepideh BarzegarFallah, Fatemeh Hasani, Ghazal Ebrahimi, Faranak Razeghi, Hanieh Rezaiefar, Parastoo Taleenia, Zahra Mohamadi, Hanieh Hadinejad

Tehran, Farzanegan (1) High school

Abstract In this paper we describe Farzanegan soccer simulation team activities. After an introduction to the Soccer Simulation 3D League we will describe our team architecture and its behavior which contains some skills used in order to deal with several challenging problems in this field such as balancing, movements, making decision.

Soccer Simulation 3D League

(This section introduces the league context)

1 Introduction

Farzanegan Highschool Laboratory has been working on RoboCup science many years and achieved many remarkable successes in different Robocup Competition Leagues. Our simulation group had been working on Rescue Simulation League and Soccer Simulation 2D League, and subsequent to this our researches has been started in Soccer Simulation 3D since 2009.

The RoboCup 3D Simulated Soccer League allows software agents to control humanoid robots to compete against one another in a realistic simulation of the rules and physics of a game of soccer. The platform strives to reproduce the software programming challenges faced when building real physical robots for this purpose.

The Robocup simulation leagues focus on AI and team strategies developed by the participant teams. The 3D simulation competition increases the realism of the simulation environment by adding an extra dimension and more complex physics. The interest in the 3D simulation competition is design of implementation of Multiagent high-level behaviors.

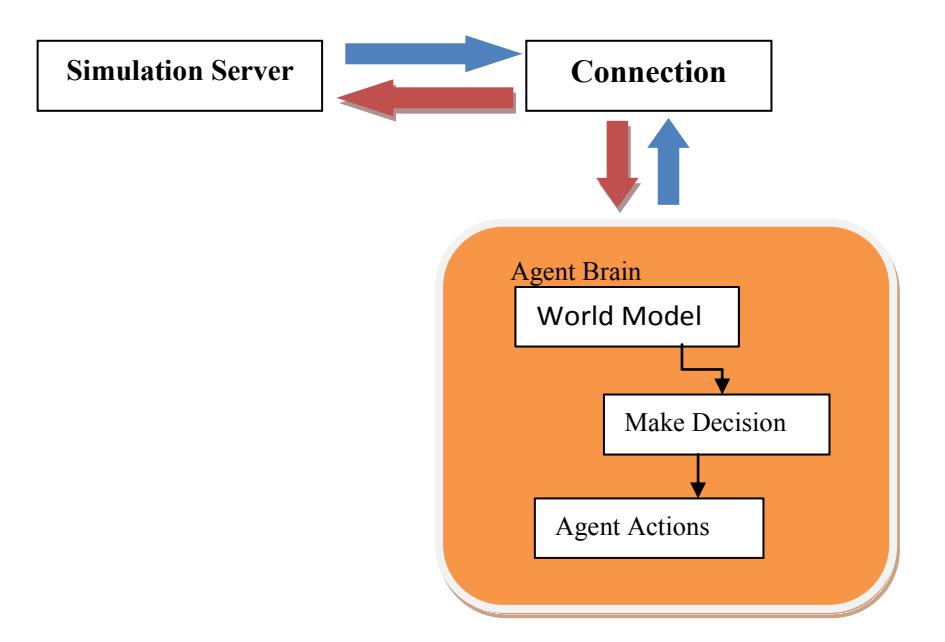

2 Team Architecture

The base code was written in 2009, and after that our development and optimization activities has been started on it. Classify agent behavioral layers which exist in base code help us to design some methods to make good decisions.

2.1 Connection

This class is responsible for communicating with server. It synchronizes different threads of execution with server timing. When the new information arrives, the connection layer updates the agent's WorldModel.

2.2 Command

This class makes the commands which we send to the server.

2.3 Mathematics

Here are our mathematical classes such as Vector and Matrix.

2.4 Utilities

In this folder we have some useful classes such as config (which we use in order to initialize some variables and change them easily.) converter (which we use in order to convert different types of values to each other, for example degree to radian or Cartesian coordinate system to spherical coordinate system. ) Logger, Timer and Types.

2.5 Kinematics

Here we have the Forward and Inverse Kinematic classes which will be explained later.

2.6 WorldModel

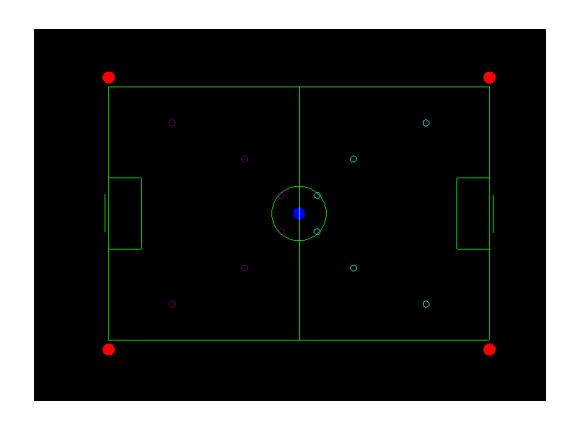

Worldmodel contains main and basic calculations used in actions of robot like walking, turning and decision. In this part we are dealing with position and rotation status of each object on the field. And of Course for the agent itself, we calculate useful information about joints of agent, forces which are applied towards it, gyroscope, etc. In each cycle, server sends a string of information with specific format and arrangement. First of all, we make a graph out of information that server sends. After that, in each cycle of time, we extract the information and update our model of world. Some information follows simple form of updating. For example, to update angle of turning we just specify, individualize and then save raw data. But for updating vector of accelerometer and amounts of gyroscope, we need some calculations. Server gives amount of changes in accelerometer vector since last time, but we need accelerometer vector itself. So we do one integral on it. More complicated calculations are in localization of agents and ball. To check whether robot is falling down or not or calculate the angle between agent and any point in field, we save information that server gives us in each cycle and use complicated calculations. For an example, raw information received from server contains seen objects by robot, the way it sees them. Its moves and turns in neck joints and body situations influence the numbers. So the first thing to do is to turn those relative positions to universal positions using rotation matrixes which rotates back all those relative positions. Since neck turn does not depend on body rotation, we need different matrixes, neck and body. Neck rotation matrix is calculated easily since it is consist of two simple joints and we have the angles. But the body rotation matrix is somehow more complicated. We briefly say that it can be calculated in two different ways, in the first way we use gyroscope preceptor and in the second one we use relative information from horizontal and vertical lines on the field.

2.7 Agent

The agents must contain some procedures which manage their behaviors. Robot needs special skills to play better, such as kick, pass, dive, stand up (which itself has different kinds depended on the way that the agent falls. Standup from front, back, left side or right side), turn (rotates to place where is asked). These skills are written in this part. This part is divided in to some layers in order to be more organized. The Inheritance of Agent class is shown below:

3 Walk

Walking of the robot is by using a loop of stable steps. The step for each leg is divided into two movements: raising the leg and moving it forward, and then taking it down during moving it forward again.

The magnitude of upward and forward motion is optimized by utilizing PSO algorithm. [5]

We used Inverse Kinematics to commute these magnitudes into proper values for the joint angles, which are given as inputs to the motion functions.

Inverse Kinematic is a method to compute a set of joint angles that satisfy the end-effecter constrains.

For stability some physical factors must be considered. One of these factors is Center of Mass (CoM). We can also use other dynamic feedbacks such as Zero Moment Point (ZMP). In stable patterns this point must be within the supporting area. (The convex hull of the robot's feet.)

3.1 Forward Kinematic

Our purpose in this algorithm is determining the position of the joints and other points with knowing the angles of the joints.[2] One of the methods which helps us to achieve this purpose is Denavit Hartenberg.[3] In fact, this method goes from joint to joint in four steps, multiplying a matrix in the previous matrixes in each step.

1st Step: a displacement along Z axis

2nd Step: rotation around Z axis

3rd Step: displacement along X and Y axes

4th Step: rotation around X axis

After going joint to joint, the final matrix must be multiplied by the inverse of the total rotation matrix in order to obtain the coordinates in the universal coordinate system.

3.2 CoM(Center of Mass)

We used the forward Kinematic method to find the centers of the bodies of the Nao robot (for example each hand itself has two bodies, and each Leg itself has three bodies.). Then we can compute Center of mass of the whole robot with this formula:

$$\sum (m_i * p_i) / \sum m_i$$

When miis mass of the body and $p^i$ is the position of the center of the body.

3.3 Inverse Kinematic

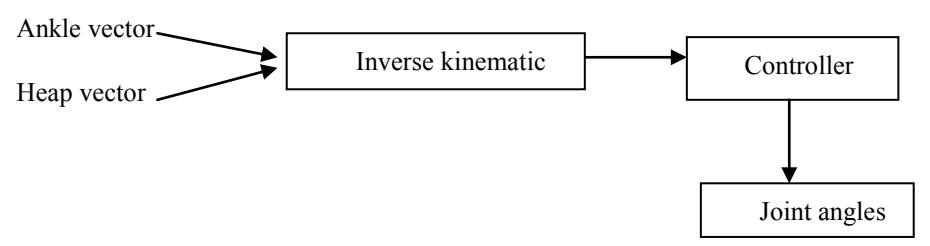

Robot control actions are executed in the joint coordinates while robot motions are specified in the Cartesian coordinates. Conversion of the position and orientation of a robot from Cartesian space to joint space, called as inverse kinematics problem, which is of fundamental importance in calculating desired joint angles for robot design and control.

The algorithm uses the displacements of each joint then gives us joint angles. For a robot with n degree of freedom, at any instant of time joint variables is denoted by $\theta^i = \theta(t)$, i =1,2,..,n , and position variables $X^i =X(t)$, i =1,2,..,n . The relations between the position X(t) and joint angle θ(t) can be represented by forward kinematic equation, X(t)=f(θ(t)).

The Inverse Kinematic exactly does the visa versa thing, it means that it gets the position and produces the appropriate angles.

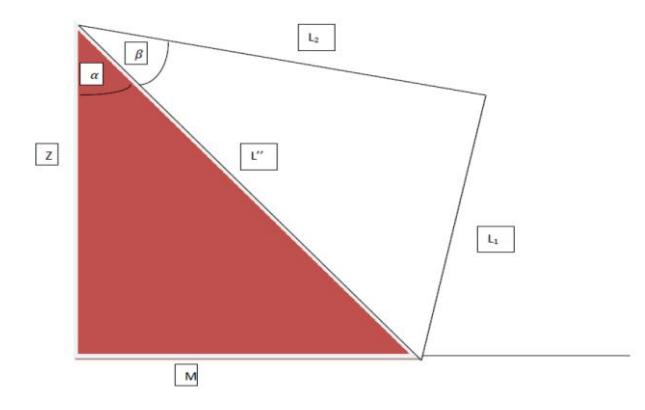

We had simplified the problem with some assumptions. For example we have omitted the first joint in our calculation temporarily and will add it later. And we tried to have the ankle parallel to the ground. So we find these equations:

$$\alpha = arc \tan \frac{M}{z}$$

$$\beta = arc \cos((l_1^2 - l_2^2 - l''^2)/(-2 * l_2 * l''))$$

$$\theta_3 = \alpha + \beta$$

$$\theta_4 = -arc \cos((l''^2 - l_1^2 - l_2^2)/(-2 * l_1 * l_2) + 180)$$

$$\theta_5 = -\theta_3 - \theta_4$$

$$\theta_2 = -arc \tan \frac{\gamma}{z}$$

$$\theta_6 = -\theta_2$$

4 Online Modeling

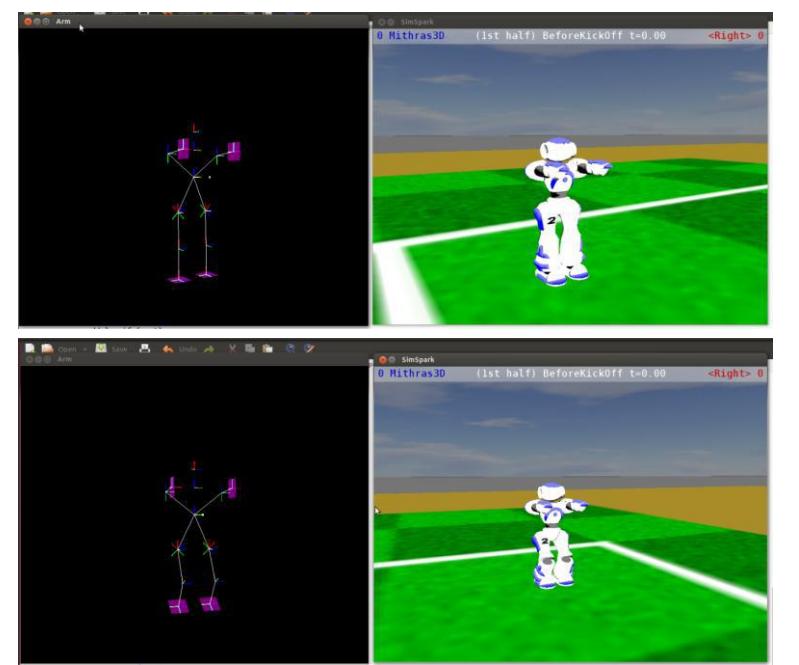

In order to observe the robot actions better we have modeled the Nao robot in OpenGL which works parallel to the Simspark server with getting some outputs from the agent.

5 Future Works

In the worldmodel part we are working on minimizing the errors. In order to do this we want to add some filters to our calculates.

In the walking method we are working on our equations in order to add the first engine to the calculations and omitting some of the limitations that we use them now. And also we are optimizing the skills and decision making of the Agent. We are working to use the CoM that we have calculated in order to make more stable motions.

Coordinating heterogeneous multi-agent systems can be a difficult task so we are studying a procedure that is based on a developed meta-Model for a multi-purpose, adaptable, strategic coordination layer. [6]

References

1. Atieh AlSadat Moosavian , Sara Javadzadeh No , Armita Sabeti Ashraf ,Nazanin Sadat Dastserri, Farzanegan Team Description Paper 2011 Soccer Simulation 3D league
2. http://www.cs.duke.edu/brd/Teaching/Bio/asmb/current/Papers/chap3-forward-kinematics.pdf
3. Ravi Balasubramanian, The Denavit Hartenberg Convention
4. Rcssserver3d user manual
5. Cord Niehaus, Thomas Röfer , Tim Laue, "Gait Optimization on Humanoid Robot using Particle Swarm Optimization".
6. João Certo,Nuno Lau, Luís Paul Reis, "Multi-Agent Coordination through Strategy" .
7. http://www.wikipedia.org/
