Karachi Koalas3D Simulation Soccer Team Team Description Paper for World RoboCup 2011

Mary-Anne Williams, Sajjad Haider, Saleha Raza, Benjamin Johnston, Osama Khan, Shaukat Abidi, Arsalan Ansari

Innovation and Enterprise Research Lab, University of Technology, Sydney, Australia; Artificial Intelligence Lab, Institute of Business Administration, Karachi, Pakistan

http://www.karachikoalas.org

Abstract This paper describes the algorithms and techniques developed by Karachi Koalas as it aims to participate in the 3D simulation league. We have developed a partial Fourier series based bipedal gait that is optimized through evolutionary algorithms while localization is accomplished through particle filters. Localization and ball tracking are further enhanced via the message passing mechanism available within the RoboCup 3D Server environment. The strategy code is based on dynamic role switching and fuzzy rules. Currently we are working on case-based and inductive reasoning to further enhance our team strategy.

1 Introduction

Karachi Koalas team was formed in the mid of 2010 as a result of a strong and further evolving scientific partnership between University of Technology, Sydney (UTS) and Institute of Business Administration, Karachi (IBA). UTS has a strong commitment to the RoboCup competition and has been a frequent participant in the Standard Platform League starting from 2003. It won the Australian RoboCup Championship competition in 2004 and was the top International Team in 2004 at Robot Soccer World Cup where it came first in the Soccer Challenges and second in the Soccer Games. Since 2008, it has formed a joint Standard Platform League team, named WrightEagleUnleashed [1], with University of Science and Technology China, which was the Runner-Up of 2008.Several papers have been published by the team members on RoboCup related research topics that demonstrate its commitment and contribution to the advancement of RoboCup [2-9]. IBA, on the other hand, being one of the premier higher education schools in Pakistan, is also committed to robotics related education and has taken several pioneering steps to introduce robotics at high school, undergraduate and graduate levels. The human resource and skill sets present at both UTS and IBA complement each other's research interest perfectly and is already resulting in collaboration in many areas within the realm of RoboCup.

Being a new team in 3D simulation league, we had to write everything from scratch, be it locomotion, localization or team behavior. The rest of the paper describes the development environment and code architecture of Karachi Koalas, advancements made in locomotion, localization and team behavior and the further high priority tasks we aim to finish before the competition.

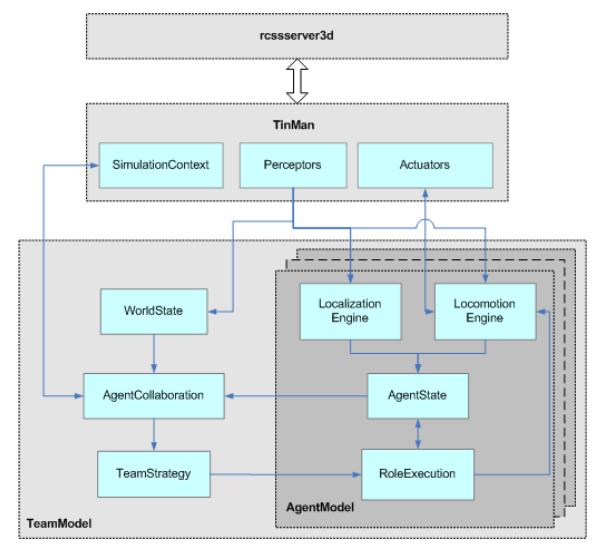

Fig. 1. Software Architecture
Fig. 1. Software Architecture

2 Development Environment

We are the first team in 3D simulation league which has done all the development in C#/Mono. We've used the newly released TinMan library [10] for communication with the server. In the beginning we also explored littlebats[11] and zigorat[12] libraries in addition to TinMan but then decided to focus on TinMan as it is based on .NET which matches with the development expertise of the KK team members. TinMan's execution on Linux has been made possible through Mono. Mono is an open source implementation of .NET framework which enables .NET applications to be developed and executed on Linux. This flexibility provided us an ideal platform to build our code simultaneously in Windows and Linux environments. We have also made extensive use of the recently released debugging tool RoboViz [13]. The tool is great for the dynamic placement of ball and agents as well as getting insight of agents' internal states and beliefs

3 Software Architecture

We have developed a modular architecture that is built on top of the TinMan library. Fig. 1 provides a high level view of the overall software architecture. TinMan supports low-level interfacing with the RoboCup server (rcsserver3d) by providing higher level abstraction of preceptors and actuators for communication with the server. These actuators and preceptors are used by our AgentModel and TeamModel. AgentModel is responsible to handle the functioning of an individual agent. This includes maintaining the current state of the agent in AgentState, localizing it in the field using localization engine and enabling it to exhibit different types of motion via locomotion engine. Locomotion and localization are two key components of AgentModel and have been described in detail in the following sections. Overall coordination among agents is performed by AgentCollaboration module that gathers an agent's state from AgentState and game/world state from WorldState and applies different heuristics to devise a suitable strategy. TeamStrategy module deals with the execution of a certain strategy by adopting a suitable formation and dynamically assigning different roles to each player. Agents are then responsible to enact these roles using RoleExecution. The RoboCup 3D Server supports direct communication among agents through its messaging interface. This interface has also been exploited by the AgentCollaboration module that in turn uses SimulationContext of TinMan to receive and broadcast messages

4 Locomotion

Our locomotion efforts were focused on the development of the following skill sets:

  • Forward, backward, turn and side walks
  • Getup from back and belly and diving behavior of the goal keeper
  • Forward, side and angular kicks

4.1 Forward and Side Walk

For forward, backward, turn and side walk routines, we opted for a computational intelligence/machine learning based approach to learn the periodic motion of relevant shoulder and leg joints. The movement of each joint is modeled using Partial Fourier Series (PFS) of the form

$$f(t) = a_0 + \sum_{n=1}^{N} a_n \sin(\frac{2\pi nt}{L} + \phi_n)$$

where N is the number of frequencies, a₀ is the offset, aₙ represents amplitudes, L is the period and φₙ represents phases.

Evolutionary Algorithms were used extensively in this walk learning and optimization process. They were used in two different scenarios: (a) to learn the walk of an actual Nao and (a) to further optimize that walk within the simulation environment. At UTS, we have access to actual Naos and we used them to generate walk data. The default NaoQi walk engine was used to get angles of different joints as Nao performed different walks. Once data was collected for a particular walk, an evolutionary algorithm was used to find parameters of PFS that best fit the data. The process was repeated for each joint. Fig.2 shows the plot of graphs obtained through actual forward walk and the learned PFS for hip roll and ankle pitch movements.

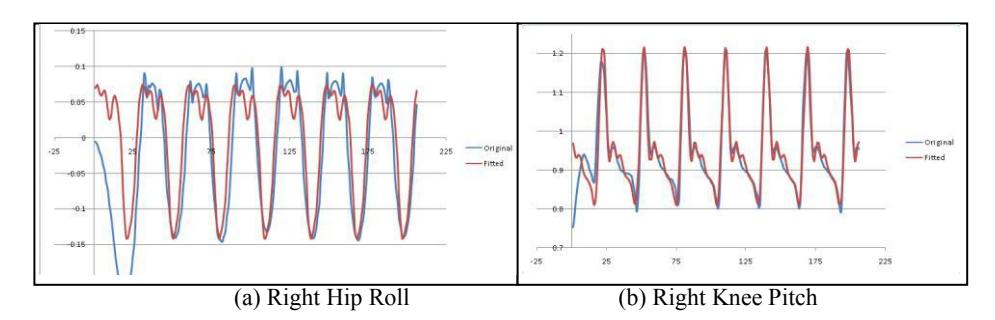

Fig. 2. Graphs of Original Data and Fitted Equations based on Partial Fourier Series
Fig. 2. Graphs of Original Data and Fitted Equations based on Partial Fourier Series

4.1 Getup from Back and Belly

The accelerometer sensor in Nao gives values of gravity for the x,y and z axes. Using these values one can discover the orientation of the robot - whether it is standing up, has fallen on its sides or its back/belly. We have, thus, used these accelerometer values for the identification of the state of the robot: standing or fallen on the ground. Once the robot figures out that it has fallen on the ground, it calls the standup routine. The standup behavior implementation involves key-framed joint movements for each action involved in getting up to a stable position from all possible orientations. A different set of key-frame motions have been defined for Get up from Belly in contrast to Get up from Back. A similar set of key-framed joint movements have been implemented for goal keeper's diving behavior.

4.2 Forward, Side and Angular Kicks

All kick related behaviors are generated by a detailed analysis and tuning of the joints on the simulator. There are different types of kicks that are implemented: (a) side kick, (b) angular kick and (c) forward kick (or shoot). The side kick is implemented to pass the ball to a support player. The angular kick is designed for dribbling and for passing the ball to another teammate at different angles. The forward kick or shoot is designed for scoring a goal as well as for long distance passes. Left and right versions of these kicks are available. The selection of leg for the kick/pass (right or left) is determined by the angles provided to the agent. A change of sign determines the preferred leg to be used.

5 Localization

Our localization module currently uses a particle filter and works in the following manner. If more than one marker is available through preceptor/vision sensors then it uses the triangulation method to compute the location and orientation of the corresponding player. It also reinitializes/resamples particles within the neighborhood of the player's position and orientation in this step. If only one marker is available, then first it predicts the position of each particle using the motion equation and second updates the position of the player using the weighted average of particles' coordinates. Particles whose coordinates and orientation are more consistent with the available preceptor information are assigned more weight. In case no marker is available then the motion equation is applied to each particle and the position of the player is updated as a weighted average of particles' coordinates

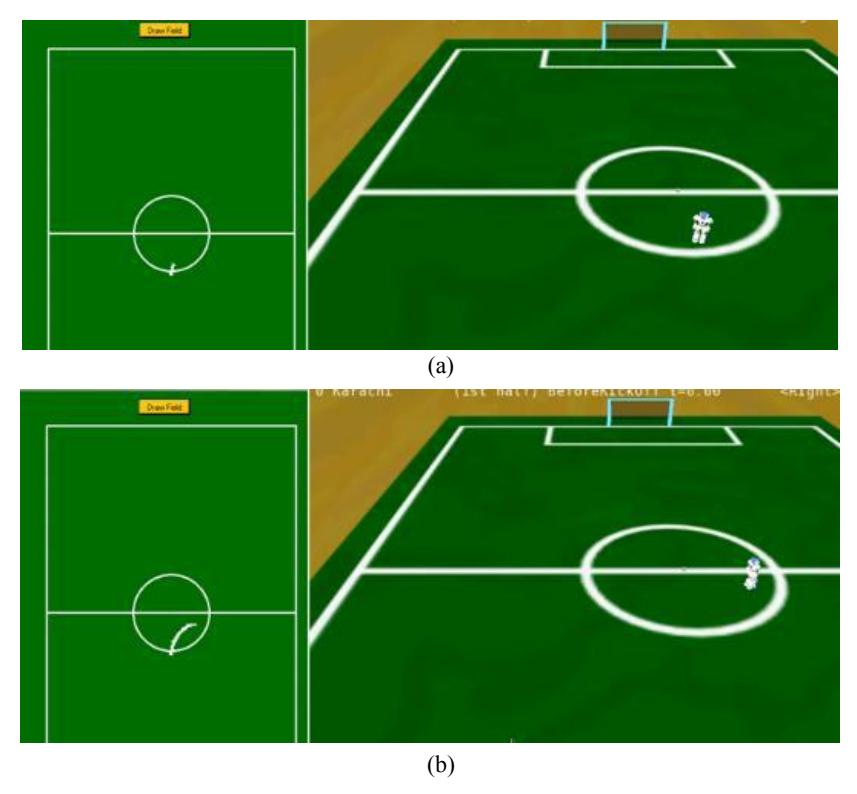

Fig. 3. Particle Filter Testing Module
Fig. 3. Particle Filter Testing Module

6 Strategy

Being a new team, a significant portion of our efforts to date have been focused on developing competitive locomotion and localization mechanisms. As of now, our strategy module is capable of team formation, role switching, adversary/situation awareness and priority-based fuzzy rules. Four different types of roles are defined for the players: goal keeper, defenders, attacker and supporters. Defenders are further broken down into left and right defenders depending upon their default positions. The attacker/supporters role is dynamic and any player in this set can become an attacker if it satisfies certain conditions. The remaining players then take the supporter role automatically. State machines in the form of priority fuzzy rules are defined for each role. These rules take inputs from a player's vision and the messages it receives from other team members. The rules are defined after careful analysis of several training matches. Our current focus is on enhancing the existing strategy via application of machine learning techniques on game logs. Similarly, incorporation of case-based and inductive reasoning is another area of active research and development. We are also implementing path planning and collision avoidance algorithms as part of our team strategy. In addition, we aim to apply our work on strategy optimization in dynamic uncertain situation within the realm of RoboCup Soccer [17- 21].

Acknowledgement

We are extremely grateful to Drew Noakes, the creator of TinMan, and to Justin Stocker, the creator of RoboViz, for their continuous and prompt support that has immensely helped us in gaining a better understanding of the respective libraries.

References

  1. Anshar, M and Williams, M-A: Extended Evolutionary Fast Learn-to-Walk Approach for Four-Legged Robots. Journal of Bionic Engineering, 255-263 (2007).
  2. Anshar, M and Williams, M-A: Evolutionary Robot Gaits. In: International Conference on Intelligent Unmanned Systems(2007)
  3. Karol, A. and Williams, M-A.: Robot soccer Distributed Sensor Fusion for Object Tracking. In: RoboCup 2005, Robot Soccer World Cup VIII Series: Lecture Notes in Computer Science, Lecture Notes in Artificial Intelligence, 504-511 (2006)
  4. Stanton, C. and Williams, M-A.: A Novel and Practical Approach towards Color Constancy Mobile Robots. In: RoboCup 2005: Robot Soccer World Cup VIII Series: Lecture Notes in Computer Science, Lecture Notes in AI, 444-451 (2006)
  5. Stanton, C. and Williams, M-A.: Grounding Robot Sensory and Symbolic Information using the Semantic Web. In: RoboCup 2003: Robot Soccer World Cup VII Series: Lecture Notes in Computer Science, Lecture Notes in Artificial Intelligence, Vol. 3020 Polani, D.; Browning, B.; Bonarini, A.; Yoshida, K. (Eds.) 757-765 (2004)
  6. Karol, A., Nebel, B., and Williams, M-A.: Case-Based Game Play in the RoboCup Four-Legged League: Part I The Theoretical Model. In: RoboCup 2003: Robot Soccer World Cup VII Series: Lecture Notes in Computer Science,: Lecture Notes in Artificial Intelligence, Vol. 3020 Polani, D.; Browning, B.; Bonarini, A.; Yoshida, K. (Eds.) 739 -748 (2004)
  7. Gärdenfors, P. and Williams, M-A, Building Rich and Grounded Robot World Models from Sensors and Knowledge Resources: A Conceptual Spaces Approach. In:2nd International Symposium on Autonomous Mini-Robots for Research and Edutainment, 34-45 (2003)
  8. Mendoza, R., Johnston, B., Yang, F., Huang, Z., Chen, X., and Williams, M-A.: OBOC: Ontology based object categorisation for robots. In: Fourth International Conference on Computational Intelligence, Robotics and Autonomous Systems (2007)
  9. http://www.wrighteagleunleashed.org
  10. http://code.google.com/p/tin-man/
  11. https://launchpad.net/littlegreenbats
  12. http://sites.google.com/site/zigorat3d/
  13. https://sites.google.com/site/umroboviz/
  14. Shafii, N., Khorsandian, A., Abolmaleki, A. and Jozi, B.: An Optimized Gait Generator Based on Fourier Series Towards Fast and Robust Biped Locomotion Involving Arms Swing. In: IEEE International Conference on Automation and Logistics (2009)
  15. Picado, H., Gestal, M. Lau, N, Reis, L. P. and Tom, A. M.: Automatic Generation of Biped Walk Behavior Using Genetic Algorithms. Lecture Notes in Computer Science, Volume 5517, pp. 805-812 (2009)
  16. Heinen, M.R. Osorio, F.S.: Applying Genetic Algorithms to Control Gait of Simulated Robots. In: Electronics, Robotics and Automotive Mechanics Conference, (2007)
  17. Haider, S., From Dynamic Influence Nets to Dynamic Bayesian Networks: A Transformation Algorithm, International Journal of Intelligent Systems, 24(2), pp. 919-933 (2009)
  18. Haider, S. and Levis, A. H., Finding Effective Coruses of Action using Particle Swarm Intelligence, In Proceedings of IEEE World Congress on Computational Intelligence, Hong Kong, pp. 1135-1140 (2008)
  19. Haider, S., Zaidi, A. K. and Levis, A. H, Identification of Best Set of Actions in Influence Nets, International Journal of Hybrid Intelligent Systems (IJHIS), 5 (1), pp. 19-29 (2008)
  20. Haider, S. and Levis, A. H, Modeling Time-varying Uncertain Situations using Dynamic Influence Nets,International Journal of Approximate Reasoning, 49 (2), pp. 488-502 (2008)
  21. Haider, S. and Levis, A. H, Effective Courses of Action Determination to Achieve Desired Effects, IEEE Transactions on Systems, Man, and Cybernetics - Part A,, 36 (6), pp. 1140-1150 (2007)
