HfutEngine3D Soccer Simulation Team Description Paper 2018

Liangxiao Hu, Zehua Yu, Donglu Zhao, Hao Wang, Baofu Fang

School of Computer and Information Hefei University of Technology, China

Abstract This paper simply describes the architecture of HfutEngine3D team. This year we use the released code form UT and add ourselves decision information. Additionally, we use CMA-ES method and closed-loop control method of an omnidirectional walking model of humanoid robots which based on Cerebellar Mode Articulation Controller (CMAC) to achieve a steady and fast omnidirectional walk.

1 Introduction

In RoboCup China 2005, we came into RoboCup 3D Simulation League for the first time. Early 3D league was sphere form and we focused on the accuracy of calculation of threedimensional physical virtual circumstance. At the same time, research of the Middleware SPADES (System for Parallel Agent Discrete Agent Simulation) was also very important. We get 10th place in RoboCup China 2005, 12th place in 2006. In 2007s, new version of server was released, which included new Fujitsu HOAP-2 simulation robot instead of old sphere robot. The new server brought many changes as well as new challenges such as, Joint Control, State Detect and etc.. After months hardwork, our team featured some new controlling ideas and its humanoid motion worked very well. HfutEngine3D got 7th in RoboCup China Open 2007 in Oct.. We also got 3rd in RoboCup Iran Open 2008 and 5th in RoboCup China Open 2008. In July 2008, we attended in RoboCup 2008 in Suzhou. It was the first time for us attended in RoboCup. We have advanced into the top 16. Later we got the 3th place in 2010 in RoboCup,and the 6th in 2012. And we got the 5th in RoboCup China Open 2017. This paper introduces HfutEngine3Ds features and implementation. Section 2 briefly describes the teams main modules. Section 3 introduces some of our team's characteristic. Section 4 tries to show our process based on Cerebellar Mode Articulation Controller to achieve a steady and fast omnidirectional walk. The last section is about our plan of future work.

2 Team Architecture

According to Peter Stones layer learning method, we design four learning modules for the team. They are InformationHandle, MotionHandle, WorldmodelHandle and StrategyHandle.

The InformationHandle takes charge of communication with server, it includes network controlling, message parsing and command queue building. WorldmodelHandle contains several states updating and some calculating of motions key parameters like whether robot is falling down. MotionHandle is designed to control Joints to finish quite complex task. StrategyHandle is the brain of robot which is based on non-goalie idea and dynamic assignment.

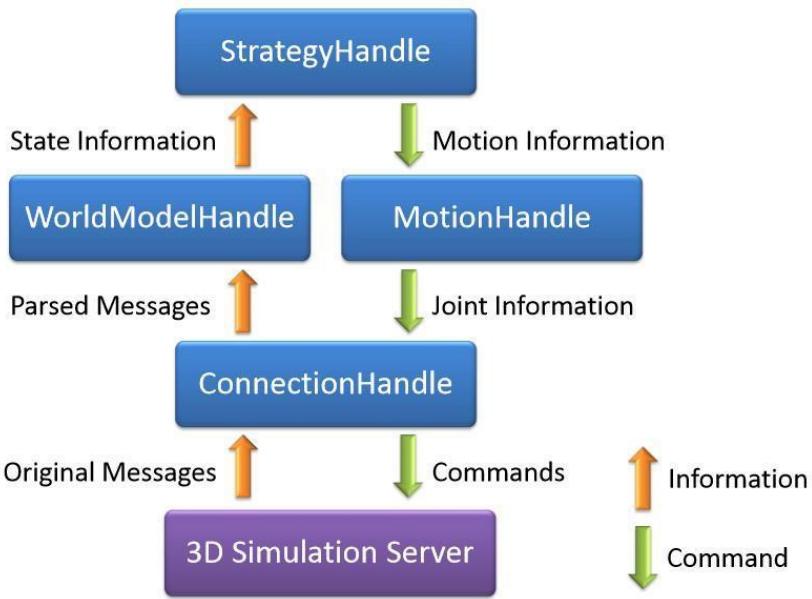

As 3D server is working in C/S mode, we get message from InformationHandle module firstly. After parsing the message, WorldmodelHandle module updates all of the states including joints state, game state and object state(ball, itself, teammates, op-ponents and etc.). StrategyHandle module analyzes current situation and then chooses one tactic with the best benefit. To achieve the strategy, the robot should also make a series of joints commands to perform motions finished by MotionHandle module, joints commands will be put into the command queue. At last, InformationHandle module gets command from command queue. Fig.1. describes HfutEngine3D's running flow. Generally, the running flow is based on sense-think-act cycle.

3 Team Characteristic

(subsections follow)

3.1 Self-Localization

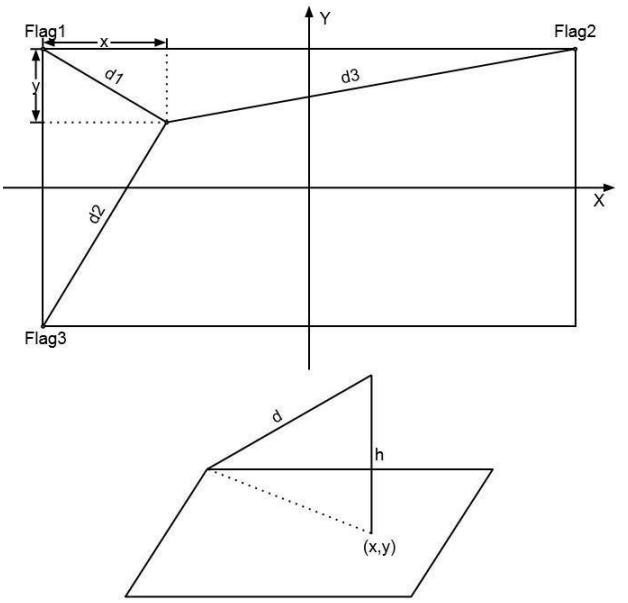

We only need three position vectors about the relationship between flags and our robot to calculate its self-position. The robots x-coordinate will be calculated by lengthways and two flags, while the y-coordinate will be given by transverse two flags (It is known that any three flags of field s arrange have two ones in lengthways and two ones in transverse, so we choose the closest three flags generally).

3.2 Filtering

In the early versions of server, client can get completely accurate visual information,so we can get accurate coordinates. While after some updates, the noise jamming is added. The visual information got from server is no longer accurate.In order to reduce the error and get the accurate coordinates of position, we use Kalman filtering algorithm to process the data.Comparing the coordinates before and after filtering, we believe that the filtering is effective.

3.3 Kinematics

The detailed parameters of the robot are quite important to the robot's development. With these parameters we can construct forward kinematics and inverse kinematics. In our team, forward kinematics is used to get the position of joints, even the height of robot. While inverse kinematics is often used to calculate the joint angle after walking gait planning.

3.4 3D Linear Inverted Pendulum

In the latest version of HfutEngine, we use 3D linear inverted pendulum to plan the Walking pattern. It can make robots walking faster and more stable without falling down too often. The following equation is the key to the planning of walking pattern:

$$\ddot{x} = \frac{g}{z_c}x$$

(1)

The equation of y-coordinate is the same as the one below. We can use this equation to calculate the x-coordinate and y-coordinate of the torso, moving foot and holding foot as the time changes. Then, use inverse kinematics functions to get the angle of each joint, and then apply these angles that have calculated, the robot can be able to walk more perfectly.

3.5 Shift Velocity Walking

Sometimes, our robots may directly walk to a random point. What we need to do is just controlling the accelerating and decelerating work period. The following is the characteristics of walking what we want our robot to make:

1. Dynamicly calculate the acceleration based on the distance to target andangle.
2. Detect the change of target, dynamicly switch different action.
3. Predict possible stance in all walking period including walking distance,velocity and the slowdown point.

To smoothing the shift process, we construct a logarithm function which is based on distance.

$$a = 1.67607 \lg(Distance To Target)$$

(2)

When calculating the slowdown point, we need to predict the max velocity the robot can reach. After analyzing from experimental data, we use a quadratic function to pre-dict the max velocity. Here are three groups of data:(d1,Vm1), (d2,Vm2), (d3,Vm3).

$$V_m = V_{m1} + \frac{V_{m2} + V_{m1}}{d_2 - d_1}(d - d_1) + \frac{\frac{V_{m3} - V_{m2}}{d_3 - d_2} - \frac{V_{m2} - V_{m1}}{d_2 - d_1}}{d_2 - d_1}(d - d_1)(d - d_2)$$

(3)

3.6 Actions

We add some actions in the latest version, such as kicking balls from the front or side. With the help of 3D Linear Inverted Pendulum, robots can make some complex actions. To cooperate with these actions, we also add some simple Articial Intelligence to help robots determine where and when to do the actions.

3.7 Decisions

We make some functions for robots to decide their next movements. These functions are divided into two categories, individual decisions and team decisions. Robot relies on its selflocation and the ball's position to decide what individual decision it takes.

Team decisions are used to control formation transform and other movements. To sum up, team decisions govern the formation, and individual decisions decides the speci al movement of individual robots.

3.8 Toolkits Development

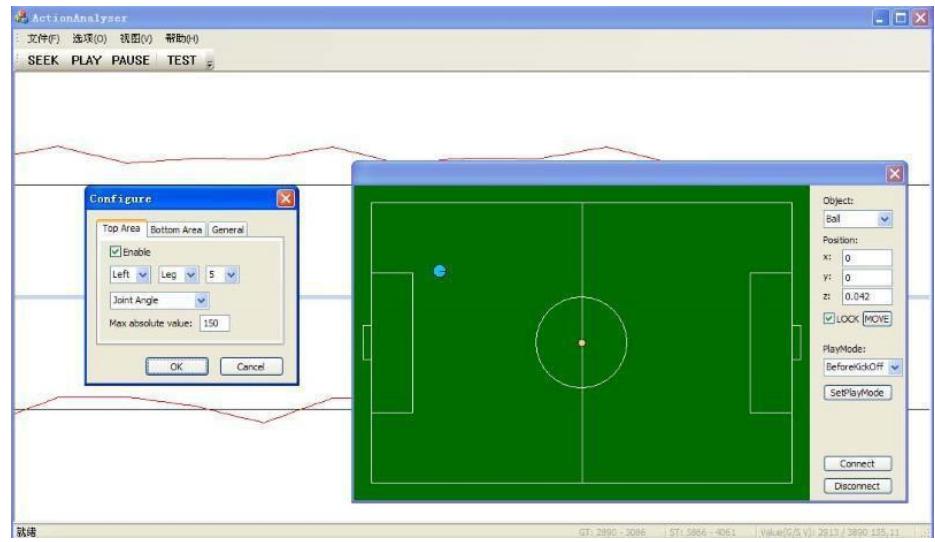

We develop a trainer. In order to operate it, we modify the source code of rcssserver3D first. The tool is connected to the simulation server through a TCP socket. By using the tool we can not only get the position of robots and ball, but also draw each angle of joints of robots, move robots or ball to a new position just by click the mouse, change the playmode of game, save the joints information of the robot to a logfile and replay it. It is very useful for us to train the skills of the robot. Fig.3 shows the trainer tool. It was developed by VS2008. It can be executed in Windows or in Linux just by the wine tool.

4 Experiments in CMAC

This year we use a closed-loop control method of an omnidirectional walking model of humanoid robots which based on Cerebellar Mode Articulation Controller (CMAC).The cubic spline interpolation method were used to plan the foot space trajec-tory, and built the Double Linear Pendulum (D-LIP). Subsequently, the trunk and foot poses were applied to compute the current joint angle value of the robot legs. Mean-while, the sensor information according to the CMAC model can be modified the angle value in the Inverse Kinematics to achieve a steady and fast omnidirectional walk.

5 Future Works

Currently, we plan to keep working on the optimization of Long-Distance Kicking and Walking Speed. And we still want to develop our tools for the robot debug and design a good algorithm for planning the cooperation of robots. We still have a long-range goal to achieve.
